Adding a Private Ingress Controller and a Public ALB to a ROSA Cluster

Starting with OpenShift 4.14, Red Hat OpenShift Service on AWS (ROSA) supports adding additional Ingress Controllers which can be used to configure a custom domain on a ROSA cluster. This guide shows how to leverage this feature to create a complete routing solution with both a private Ingress Controller (which creates an Network Load Balancer (NLB)) and a public Application Load Balancer (ALB) in front of it, providing a path from the internet to your applications.

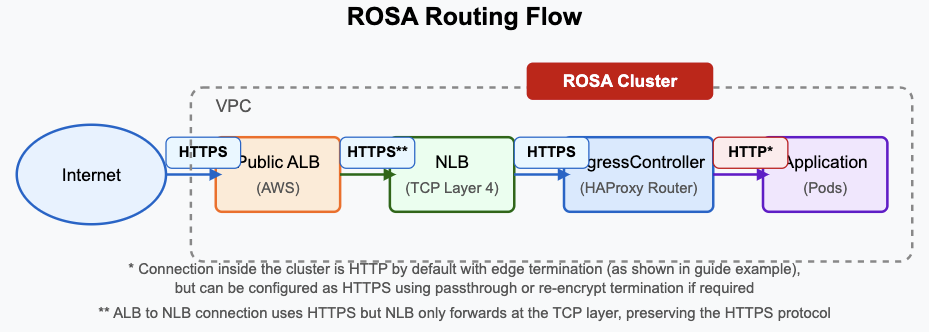

In essence, the routing flow will look like this: Internet -> ALB -> NLB -> Application.

Why this Approach

The most straightforward way to use an ALB in front of your ROSA cluster is via the AWS Load Balancer Operator (ALBO) . However, using ALBO requires you to either create NodePort Services or use Kubernetes Ingress resources with appropriate annotations.

This guide presents an alternative architecture that leverages OpenShift Routes and the built-in routing capabilities of the OpenShift platform. By creating a secondary IngressController (which manages an NLB) and placing an ALB in front of it, you can:

• Use standard OpenShift Route objects instead of managing NodePort Services or Ingress resources
• Avoid manually managing port allocations for multiple applications
• Attach AWS services like Web Application Firewall (WAF) or Shield to protect your applications
• Maintain compatibility with existing OpenShift deployment patterns

This approach differs from adding an Ingress Controller to a ROSA cluster because here it adds the additional ALB component, providing a solution to have a public-facing ALB while keeping the NLB private.

Note: This architecture has important TLS considerations to be aware of. AWS Application Load Balancers do not forward Server Name Indication (SNI) to their target groups as explicitly confirmed by AWS. Normally this would be problematic because OpenShift’s IngressController relies primarily on SNI for routing HTTPS connections. However, this architecture works because the ALB terminates the original TLS connection and creates a new one to the NLB while preserving the HTTP Host header. When the IngressController receives a connection without SNI information, it falls back to using the Host header for routing. This makes the wildcard certificate approach essential for this architecture to function properly.

Prerequisites

• A private (or Privatelink) classic or HCP multi-az ROSA cluster v4.14 and above.
• The oc CLI # logged in.
• A Domain Name in a public zone. These instructions assume Route 53, but can be adapted for any other DNS.

Set up environment

Once you’re logged into your cluster, set up the following environment variables.

Important: The variables below can be customized to fit your needs for your ingress controller.

INGRESS_NAME=private-ingress # just a name example
DOMAIN=lab.domain.com # change this to your domain (for example, our MOBB registered domain is `mobb.cloud`, so here I replaced it with `test.mobb.cloud`)
SCOPE="Internal"

Create the Ingress Controller

cat  <<EOF | oc apply -f -
apiVersion: operator.openshift.io/v1
kind: IngressController
metadata:
  annotations:
    ingress.operator.openshift.io/auto-delete-load-balancer: "true"
  finalizers:
  - ingresscontroller.operator.openshift.io/finalizer-ingresscontroller
  generation: 2
  name: $INGRESS_NAME
  namespace: openshift-ingress-operator
spec:
  clientTLS:
    clientCA:
      name: ""
    clientCertificatePolicy: ""
  domain: $DOMAIN
  endpointPublishingStrategy:
    loadBalancer:
      dnsManagementPolicy: Unmanaged
      providerParameters:
        aws:
          networkLoadBalancer: {}
          type: NLB
        type: AWS
      scope: $SCOPE
    type: LoadBalancerService
  httpCompression: {}
  httpEmptyRequestsPolicy: Respond
  httpErrorCodePages:
    name: ""
  replicas: 2
  tuningOptions:
    reloadInterval: 0s
  unsupportedConfigOverrides: null
EOF

Describe the Ingress Controller to confirm it’s ready.

oc describe IngressController $INGRESS_NAME -n openshift-ingress-operator

You should see an output that mentions that the ingress controller is Admitted.

Also verify the router pods of the new ingress controller are running

oc get pods -n openshift-ingress | grep $INGRESS_NAME

Expected output is two pods in a Running state.

Verify the service of the new ingress controller is running.

oc get svc -n openshift-ingress router-${INGRESS_NAME}

Patch the service to add a healthcheck port:

oc -n openshift-ingress patch svc router-${INGRESS_NAME} -p '{"spec":{"ports":[{"port":1936,"targetPort":1936,"protocol":"TCP","name":"httphealth"}]}}'

Here the cluster IngressController haproxy pods expose a health check on http://:1936/healthz/ready that is the documented mechanism for health checks when adding a user-managed load balancer to a self-managed OpenShift. This service exposes this health check on port 1936 of the NLB per this KCS .

Once you have a confirmation that the service is patched, let’s grab your NLB name which will be useful for further steps.

NLB_NAME=$(oc -n openshift-ingress get svc router-private-ingress -o jsonpath='{.status.loadBalancer.ingress[0].hostname}' | cut -d'-' -f1)
echo $NLB_NAME

Create the ALB

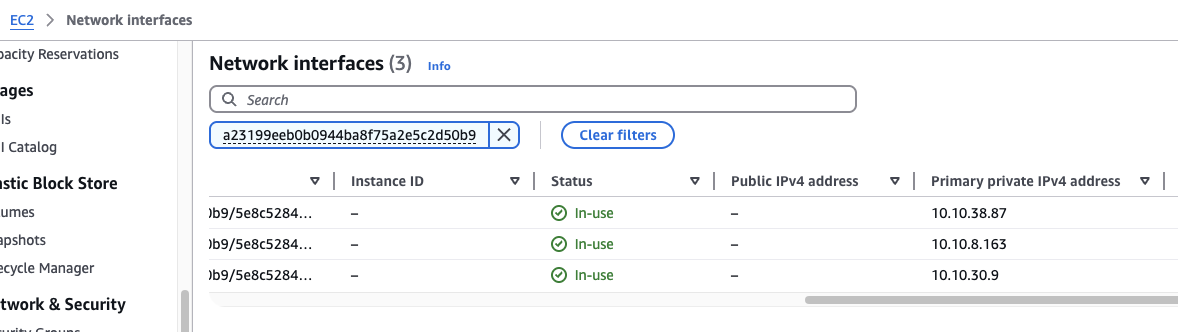

Before we create the ALB, let’s grab the IP addresses related to your NLB. Go to your AWS Console and head to the dashboard. Be sure you’re in the current region where your cluster resides. From your Console Home, search or select EC2 and from there, on the navigation tab, select Network Interfaces. Copy and paste the NLB name from the previous output on the search bar, and then scroll to the right to until you see the list of the Primary private IPv4 IP address related to this NLB. Note that we will need these IP addresses to register targets in the next step so keep them handy for now.

Next, go to the EC2 dashboard again and select Load balancers. Then click the Create load balancer button. Select ALB and click Create. Give it a proper name, e.g. test-alb, select Internet-facing as scheme, and IPv4 as load balancer IP address type.

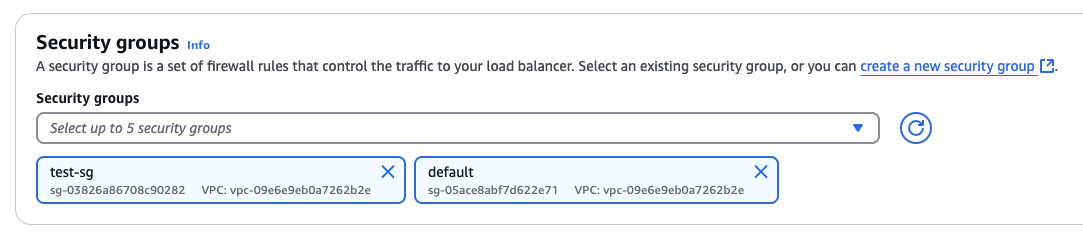

Under Network mapping, select the VPC where your cluster resides and select your AZs and the public subnets tied to them. And for Security groups, click create a new security group links which will lead you to a new tab. Give it a name, e.g. test-sg, provide description such as to allow https, and select the VPC where your cluster resides. Under Inbound rules, select HTTPS as type and 0.0.0.0/0 as source. Leave the Outbound rules as is, and click Create security group. Go back to the ALB creation tab, hit the refresh button, and add the new security group you just created.

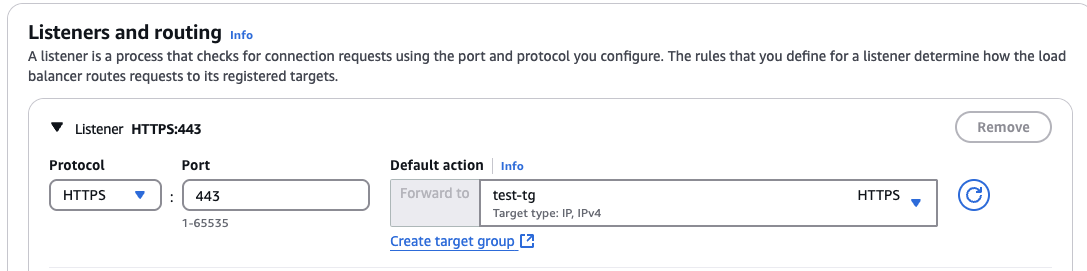

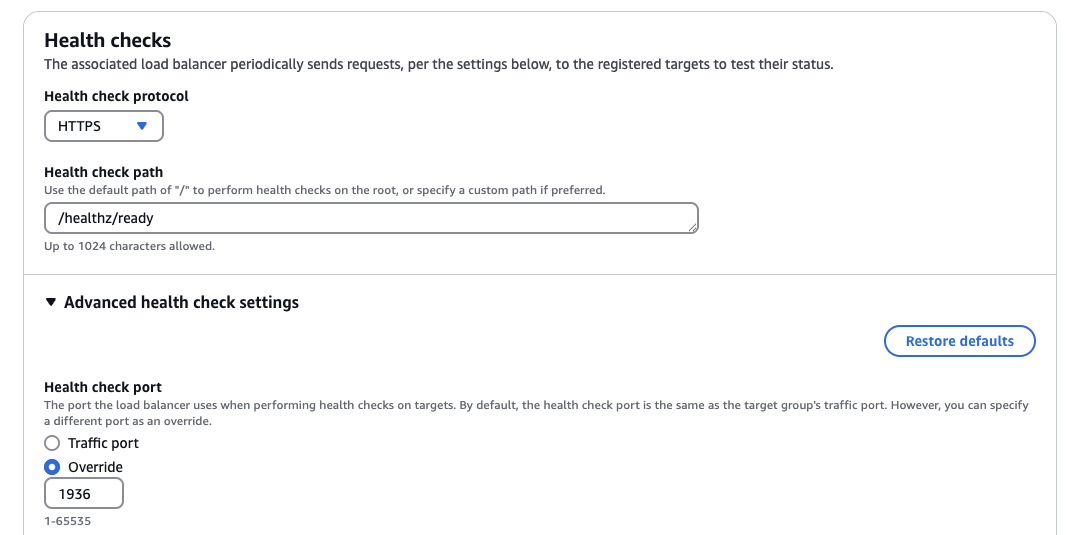

Next, under Listeners and routing, select HTTPS as protocol, and click Create target group links that will lead you to a new tab. Choose IP addresses as target type and give it a name, e.g. test-tg, and leave the rest settings to default. Under Health checks, leave the protocol to HTTPS, and point the health check path to /healthz/ready. Click the Advanced health check settings, and under Health check port, select Override and type 1936 to the port number, and you can leave the rest of the advanced health check settings to default.

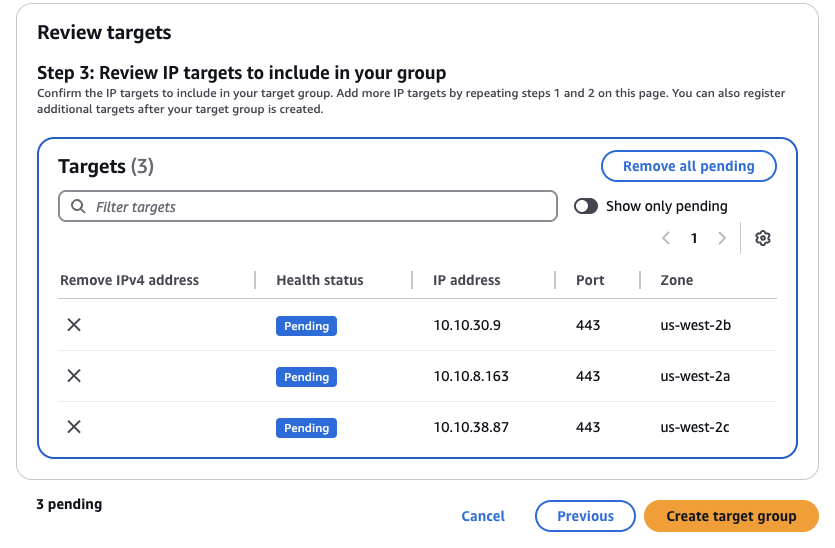

Click Next at the end of the page and this will lead you to the Register targets group. Now, enter the IP addresses of your NLB that you’ve retrieved previously. Once you added them, click Include as pending below. And at the Review targets section, you should see the health checks are in Pending state. Click Create target group to proceed.

Next, go back to the ALB creation page, refresh the target group option, and select the target group you just created.

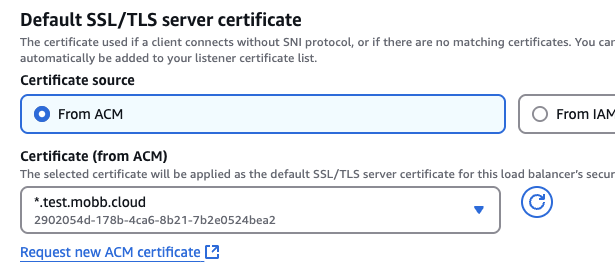

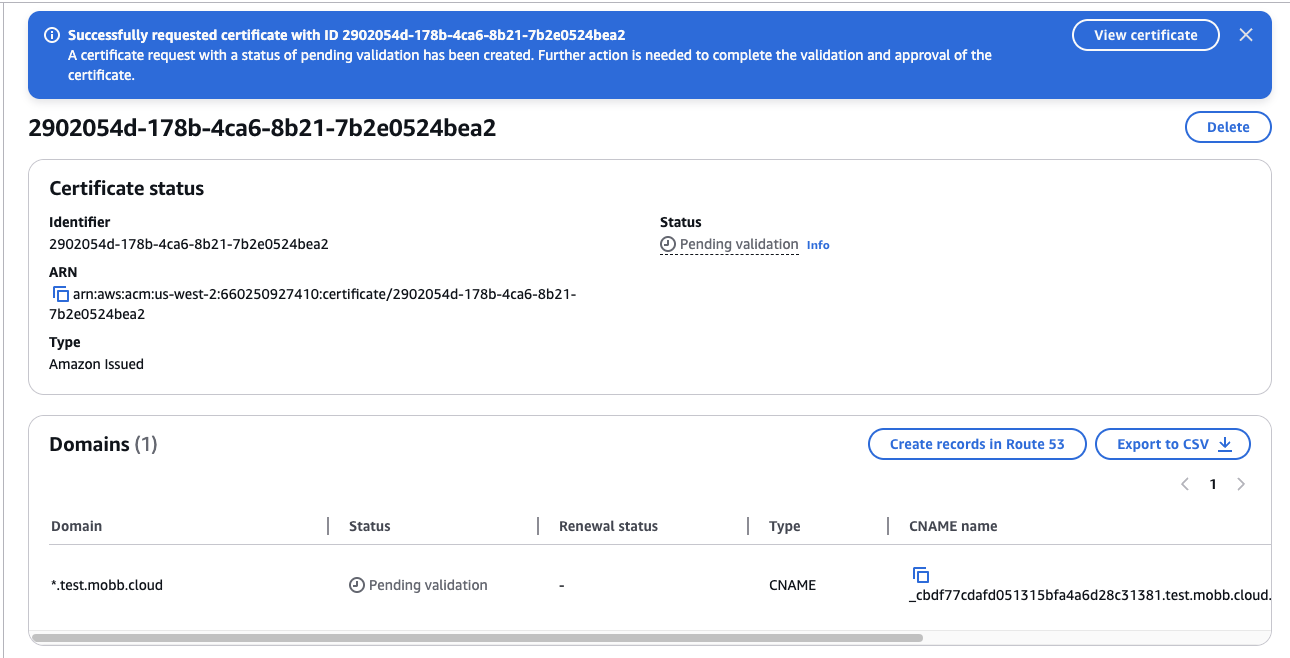

Under Secure listener settings, on the Default SSL/TLS server certificate section, you can choose Import certificate if you already have existing certificates. Alternatively, using From ACM as source, you can click Request new ACM certificate to create a new one, and this will lead you to a new tab. On the ACM page, click Request a certificate, choose Request a public certificate, and click Next. Insert the domain name, e.g. *.test.mobb.cloud, and leave the rest to default, then click Request.

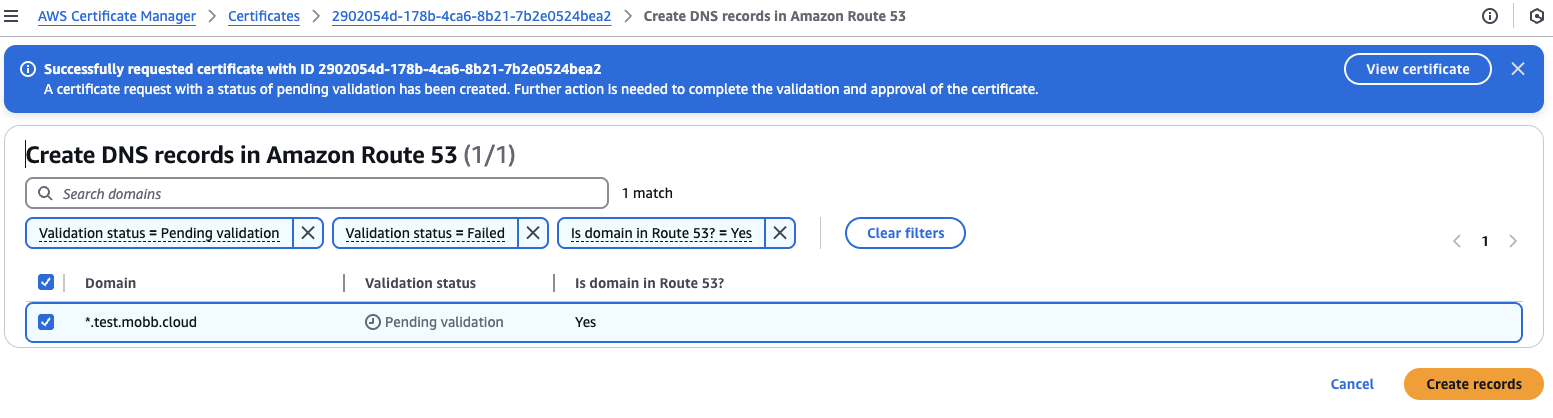

To validate this certificate, click the Create records in Route 53 button to proceed, click Create records on the next page.

Wait for a few minutes until the ACM certificate shows Issued status. Next, let’s go back to the ALB creation tab, and under Certificate (from ACM) section, hit the refresh icon, and add the certificate you just created.

Lastly, be sure everything looks good at the Summary section and then click Create load balancer. Wait for a few minutes until the ALB is fully provisioned. Grab the DNS name of the ALB for the next step.

Create (or update) custom domain on Route 53

Skip this creation step if you have already created the custom domain. To create one, go to your AWS Console. Select Route 53 and choose a hosted zone, and from there, click Create record button.

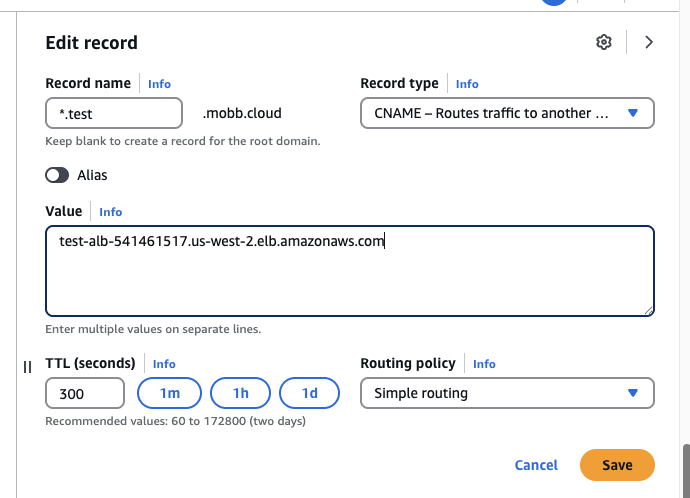

Here you will be creating a wildcard CNAME record (e.g. *.test.mobb.cloud) and point it to the DNS name of the ALB you just created, and click Save.

If you have already the record previously, then simply update the value to the ALB.

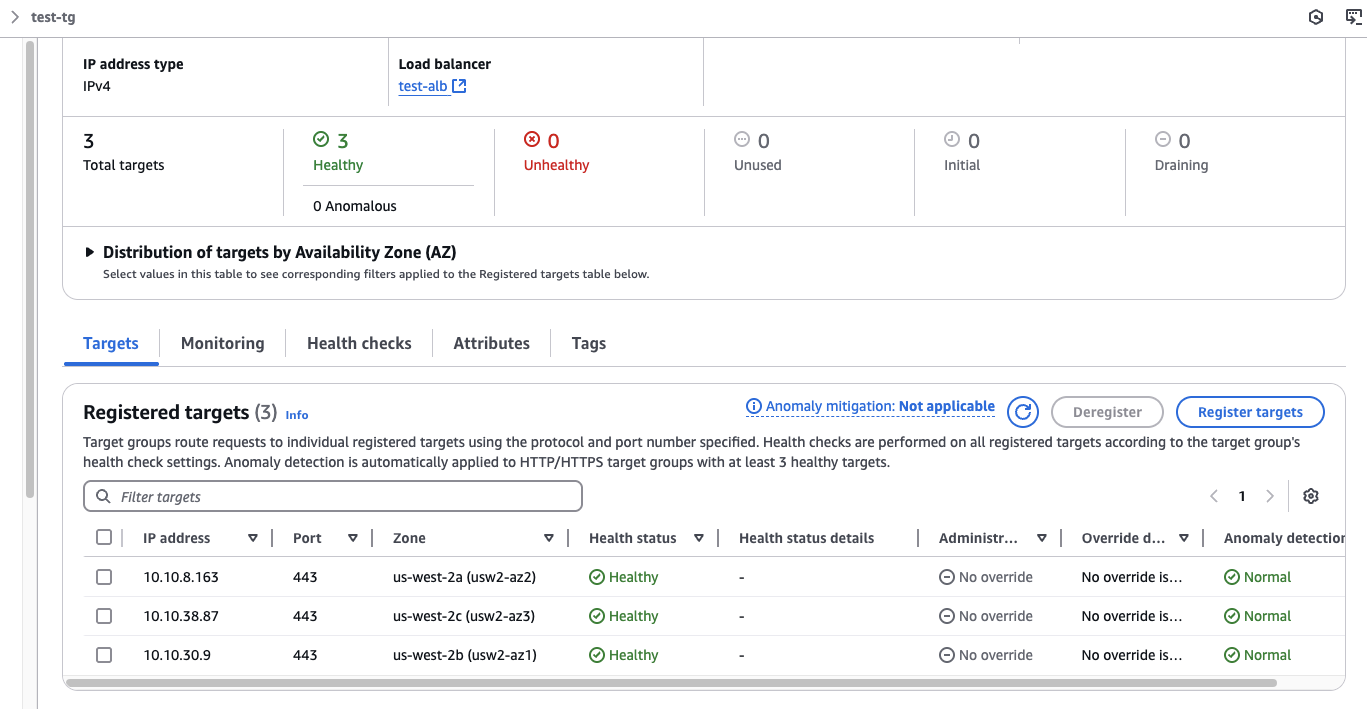

FYI, now if you look at the target group you created earlier, you should see the NLB health checks are healthy.

Test an application

Finally, let’s test this setup by creating a public application. Log in to the cluster to proceed with next steps.

1. Create a new project

   oc new-project my-public-app


2. Create a new application

   oc new-app --docker-image=docker.io/openshift/hello-openshift


3. Create a route for the application

   oc create route edge --service=hello-openshift hello-openshift-tls \
     --hostname hello.$DOMAIN


4. Check that you can access the application:

   curl https://hello.$DOMAIN


You should see the output Hello OpenShift!. Alternatively, go to your browser and access it from there.
