Using a Private IngressController with CloudFront on a ROSA Cluster

This content is authored by Red Hat experts, but has not yet been tested on every supported configuration.

AWS CloudFront is a great choice for a Content Delivery Network in front of your ROSA cluster. In many situations, it may be useful to ensure that traffic to Routes within your cluster must come from your CloudFront Distribution rather than being able to bypass it (for example, if a WAF is attached to the CloudFront Distribution).

This guide shows how to use the CloudFront VPC Origin feature in combination with a Network Load Balancer (NLB), and a private secondary IngressController type NLB, providing a path from the Internet to your applications that only goes through CloudFront.

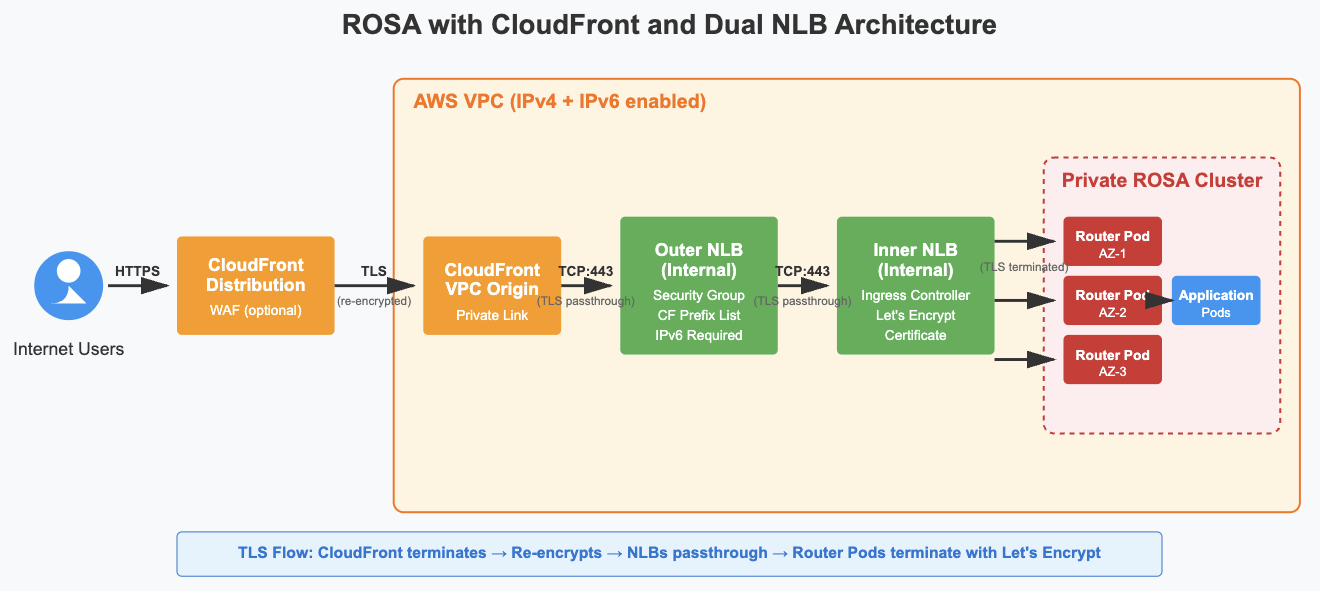

In essence, the routing flow will look like this: Internet -> CloudFront Distribution -> CloudFront VPC Origin -> NLB (Outer NLB) -> Private IngressController (Inner NLB) -> Application.

routing-flow

0. Why this Approach

This guide leverages CloudFront as a global content delivery network (CDN) and the architecture uses two NLBs - an outer NLB that receives traffic from CloudFront and an inner NLB that routes traffic to your ROSA applications. We also leverage OpenShift Routes and the built-in routing capabilities of the OpenShift platform.

CloudFront VPC Origin only works with NLBs that have security groups, but OpenShift IngressControllers are only capable of creating NLBs without security groups attached, and it is not possible to attach security groups to this NLB later. Therefore, we attach the CloudFront VPC Origin to the Outer NLB (with a security group), and this in turn talks to the Inner NLB managed by the IngressController.

By creating a secondary IngressController (type NLB), an NLB and placing a CloudFront in front of it, you can:

This approach is different from adding Ingress Controller and ALB to ROSA guide because instead of ALB, here we are adding NLB and fronting it with CloudFront acting as global CDN layer. In addition, the TLS handling in this guide is also different. Here, CloudFront terminates TLS from clients and re-encrypts traffic to the VPC Origin, the outer NLB then passes through TLS traffic without termination (Layer 4 load balancing), the inner NLB also passes through TLS traffic without termination, and finally, the router pods terminate TLS using the Let’s Encrypt certificate configured on the IngressController. That said, there are no SNI (Server Name Indication) concerns because the NLBs operate at Layer 4 and simply forward the encrypted traffic. The OpenShift IngressController receives the full TLS handshake including SNI information, allowing it to route requests normally based on the hostname. This makes the architecture compatible with multi-domain routing while maintaining end-to-end encryption.

1. Prerequisites

  • A private (or Privatelink) classic or HCP multi-az ROSA cluster v4.14 and above.
  • The VPC the cluster is installed in should have public and private subnets in each AZ.
  • The oc CLI # logged in.
  • A Domain Name in a public zone. These instructions assume Route 53, but can be adapted for any other DNS.

2. Create a private IngressController (inner NLB)

Once you’re logged into your cluster, please take a look at this guide . From there, follow the step of Create the Ingress Controller to create the first NLB (let’s call this inner NLB) and retrieve the IP addresses of your NLB. You can do so by following the first section of Create the ALB on that guide but please be sure not to continue creating the ALB since we are not going to do that here. Please keep these IP addresses handy as we are going to use it in the later steps.

3. Configure VPC for IPv6

CloudFront VPC Origin must point at subnets that contain an IPv6 CIDR block, even if that CIDR block is unused.

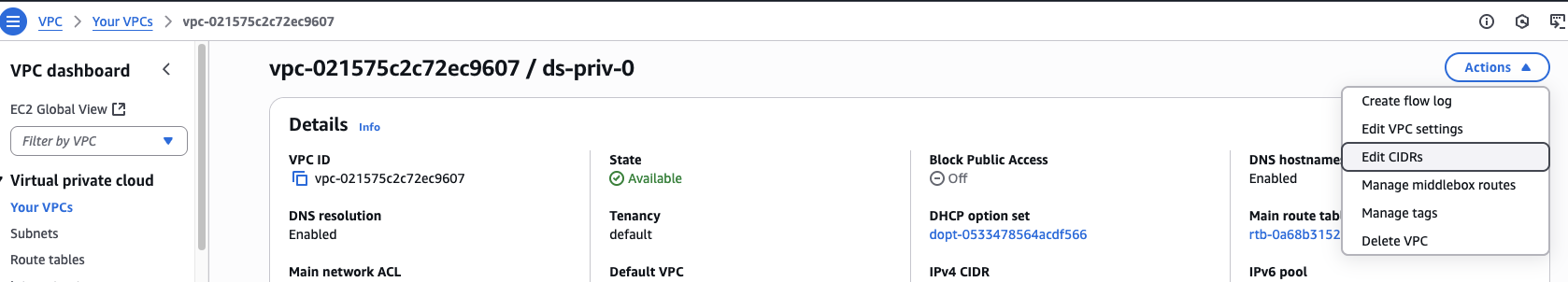

Feel free to skip this step if you have already enabled IPv6 in your ROSA VPC. On the AWS console, go to VPC and select your ROSA VPC. Then on the upper right Actions button, click and select Edit CIDRs per snippet below.

editipv6

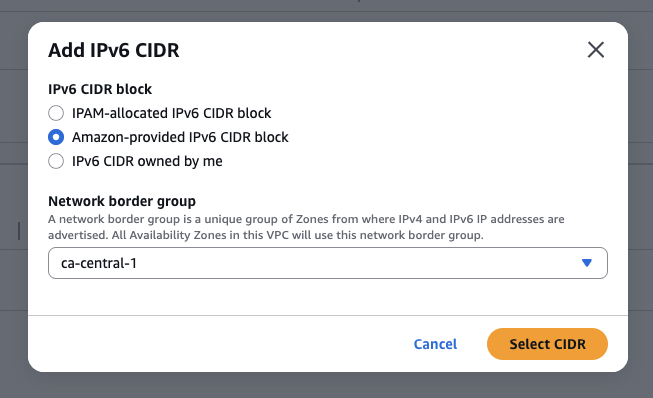

When prompted to new page, click the Add new IPv6 CIDR button. On the new prompt, choose Amazon-provided IPv6 CIDR block, be sure you’re in the right AZ (in this snippet below the cluster is located in ca-central-1), and then click Select CIDR button.

addipv6

It will then tells you that it successfully associated IPv6 CIDR. Click Close.

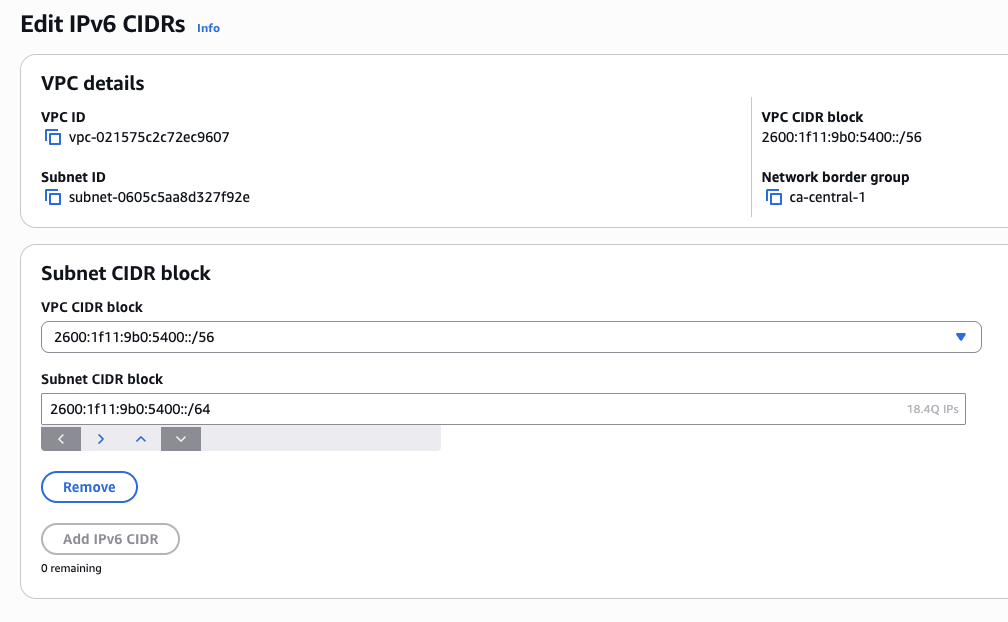

Then on the sidebar, click Subnets, and search for the three private subnets of your cluster. Pick one of the private subnets, click the Action button on top, click Edit IPV6 CIDRs, and then click Add IPv6 CIDR. Accept the auto-suggested CIDR blocks, but under Subnet CIDR block, click the down arrow to get /64, and hit the Save button.

subnet-ipv6

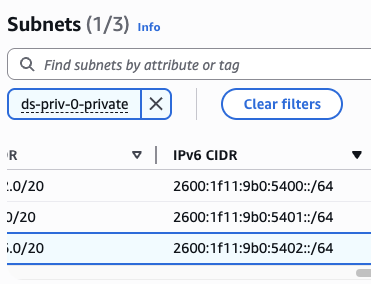

Replicate this step to the other two private subnets, but differentiate the last digit before the double semi colon for each subnets. See snippet below for an example.

subnet-ipv6-3

4. Create a Network Load Balancer (outer NLB)

4.1. Create security group for outer NLB

Let’s first create the security group for the second private ingress controller. On the AWS Console, go to EC2, select Security Groups, and then click Create security group button on the upper right side.

Then on the new page, name the new security group outer-nlb-sg and provide a description such as allow cf to outer sg, and select the VPC of your cluster.

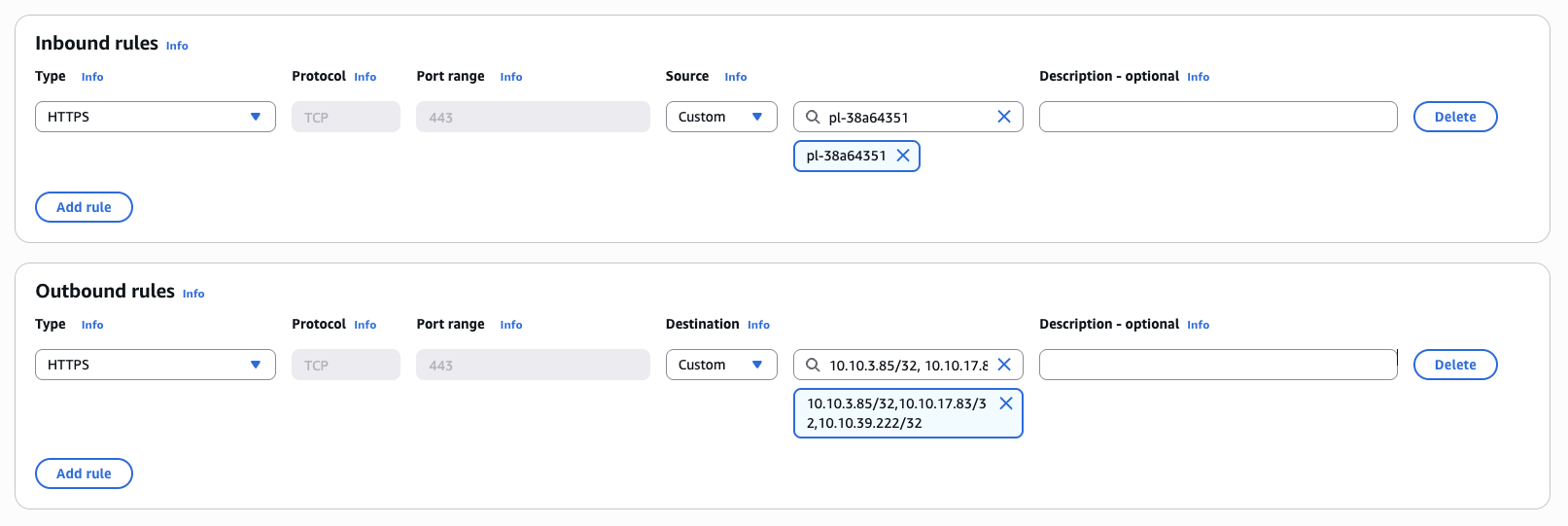

Add inbound rule HTTPS with port 443, Custom for source and search for com.amazonaws.global.cloudfront.origin-facing, which is the CloudFront managed prefix list. In my case per snippet below it returns pl-38a64351.

Then for outbound rule, also add HTTPS with port 443, Custom for destination and include all three IP addresses of the inner NLB you’ve retrieved previously.

sg-rules

And finally, click Create security group button on the lower right.

4.2. Create target group for outer NLB

Next, on the EC2 sidebar, look for Target Groups and click it. Click Create target group button on the upper right side. On the new page, select IP addresses as target type, give it a name outer-nlb-tg, and choose protocol TCP with port 443. Leave IPv4 as IP address type, and select your cluster VPC as the VPC.

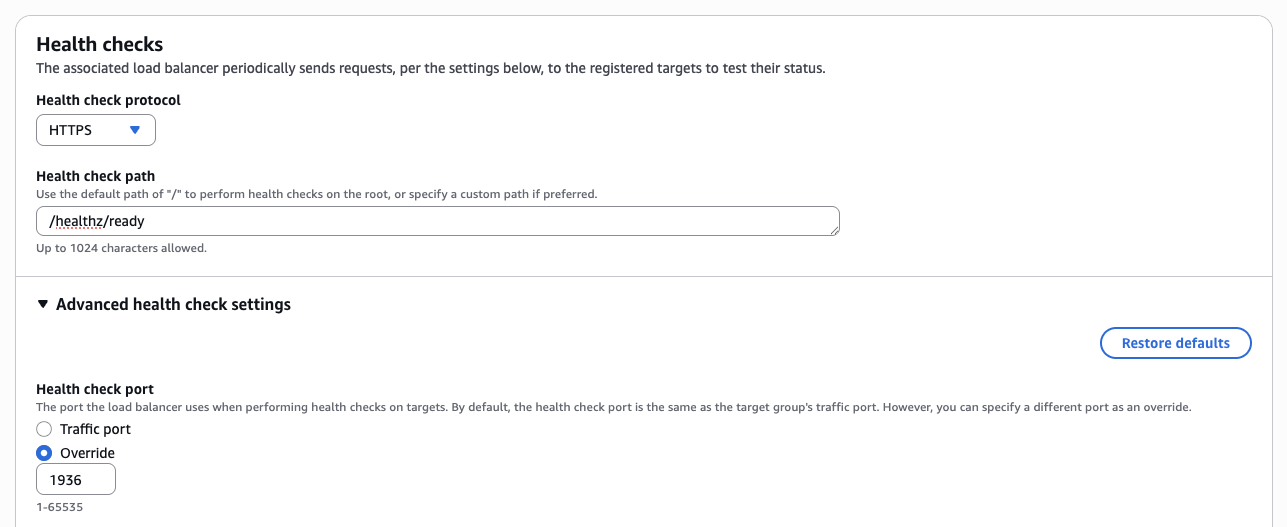

On the health check section, choose protocol HTTPS and then type in /healthz/ready for the health check path. Then click Advanced health check settings, and then under Health check port select Override and type in port 1936 underneath.

hc-tg-settings

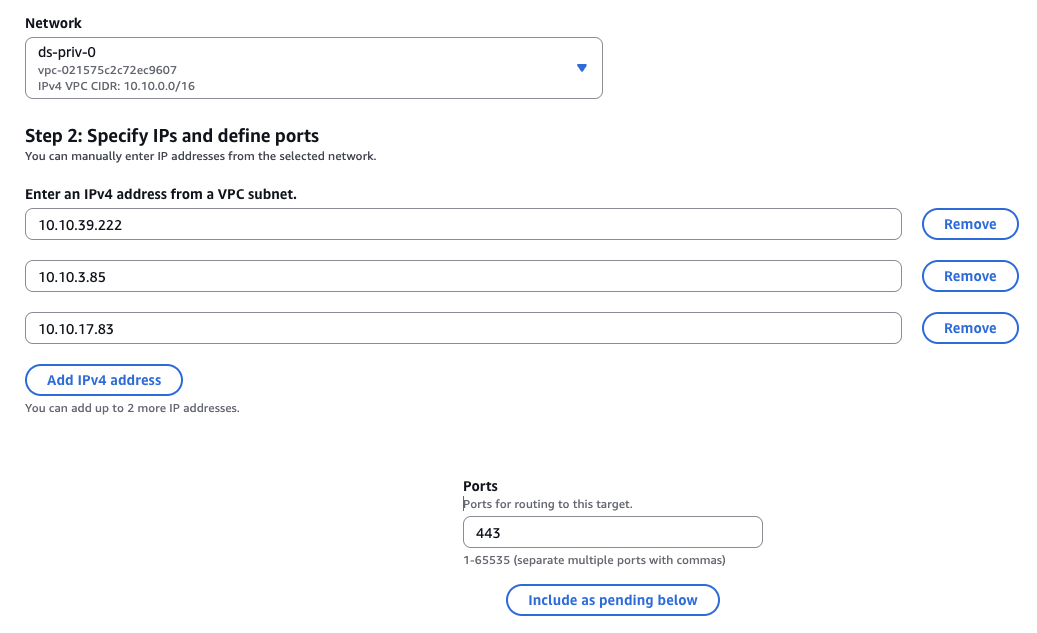

Leave the rest advance settings as default. Then click the Next button at the end of the page. Once prompted to the new site, insert the three IP addresses of your inner NLB per snippet below. Leave the port to 443 and then click Include as pending below button.

ip-tg

On the Review targets section, be sure to check that all three IP addresses are in Pending health status. Click Create target group button.

4.3. Create outer NLB

Still on the EC2 sidebar, click Load Balancers, and click Create load balancer button on the upper right corner. Select NLB as the type and hit the Create button.

On the creation page, name it outer nlb, select Internal as scheme, and leave the IP address type to IPv4. Under the Network mapping section, be sure to select your VPC, and select all the AZs and select the relevant private subnets for each. Then, under Security groups, add the security group, e.g. outer-nlb-sg that you created earlier.

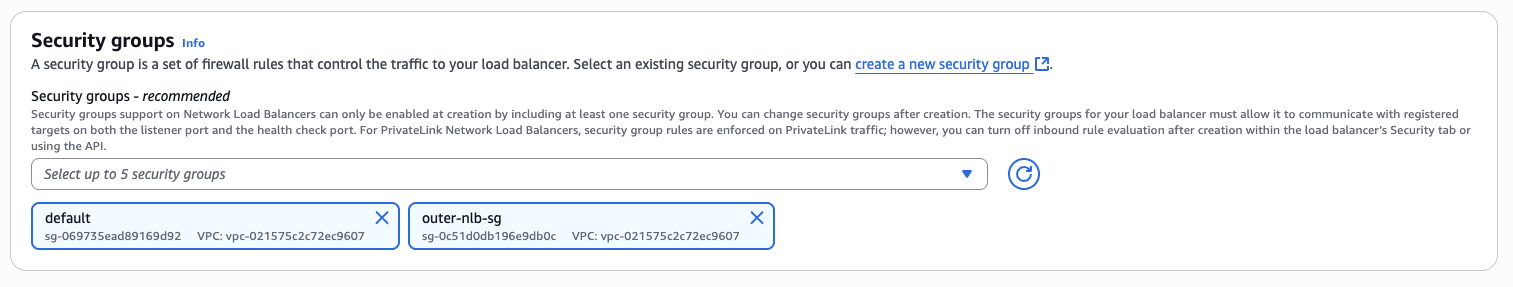

nlb-sg

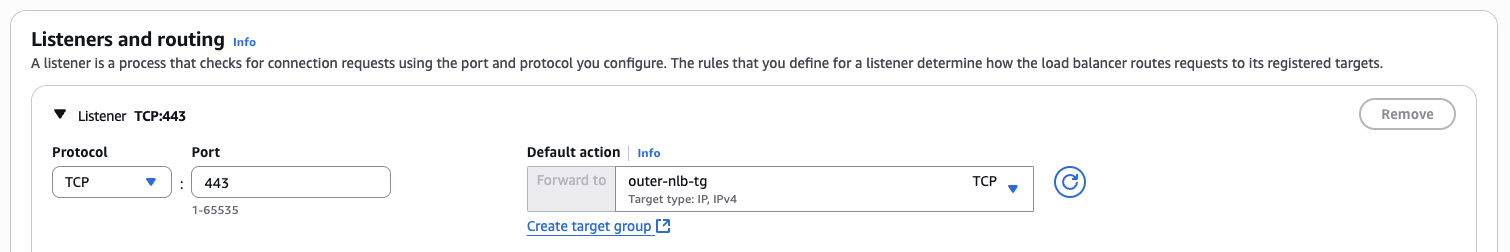

Under Listeners and routing, select protocol TCP on port 443, and forward it to the target group, e.g. outer-nlb-tg that you created earlier.

nlb-listener

Next, click Create load balancer button at the bottom of the page. It will take a couple of minutes for the status to turn from Provisioning to Active. Then, copy the Load balancer ARN as you would need it for the next step.

5. Create CloudFront VPC Origin and Distribution

5.1. Create CloudFront VPC Origin

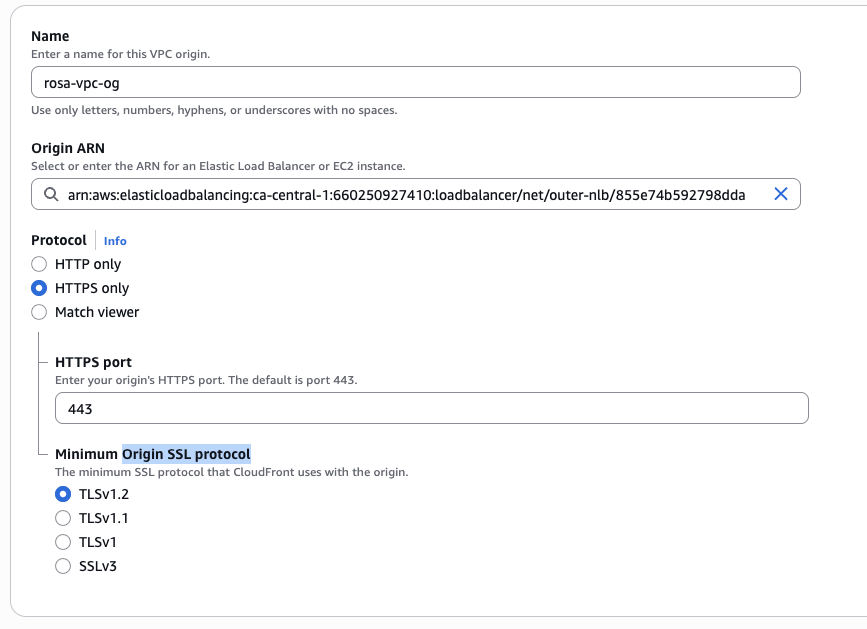

On the AWS console, look for CloudFront, and on the CloudFront sidebar select VPC origins, and then hit the Create VPC origin button on the upper right corner. Give it a name like rosa-vpc-og and paste the outer NLB ARN that you copied before for the Origin ARN. Choose HTTPS only for the protocol, leave the port ot 443 and the minimum origin SSL protocol to TLSv1.2.

vpco-create

Hit Create VPC origin button at the end of the page, and wait for a few minutes until the status changed from Deploying to Deployed.

5.2. Create CloudFront Distribution

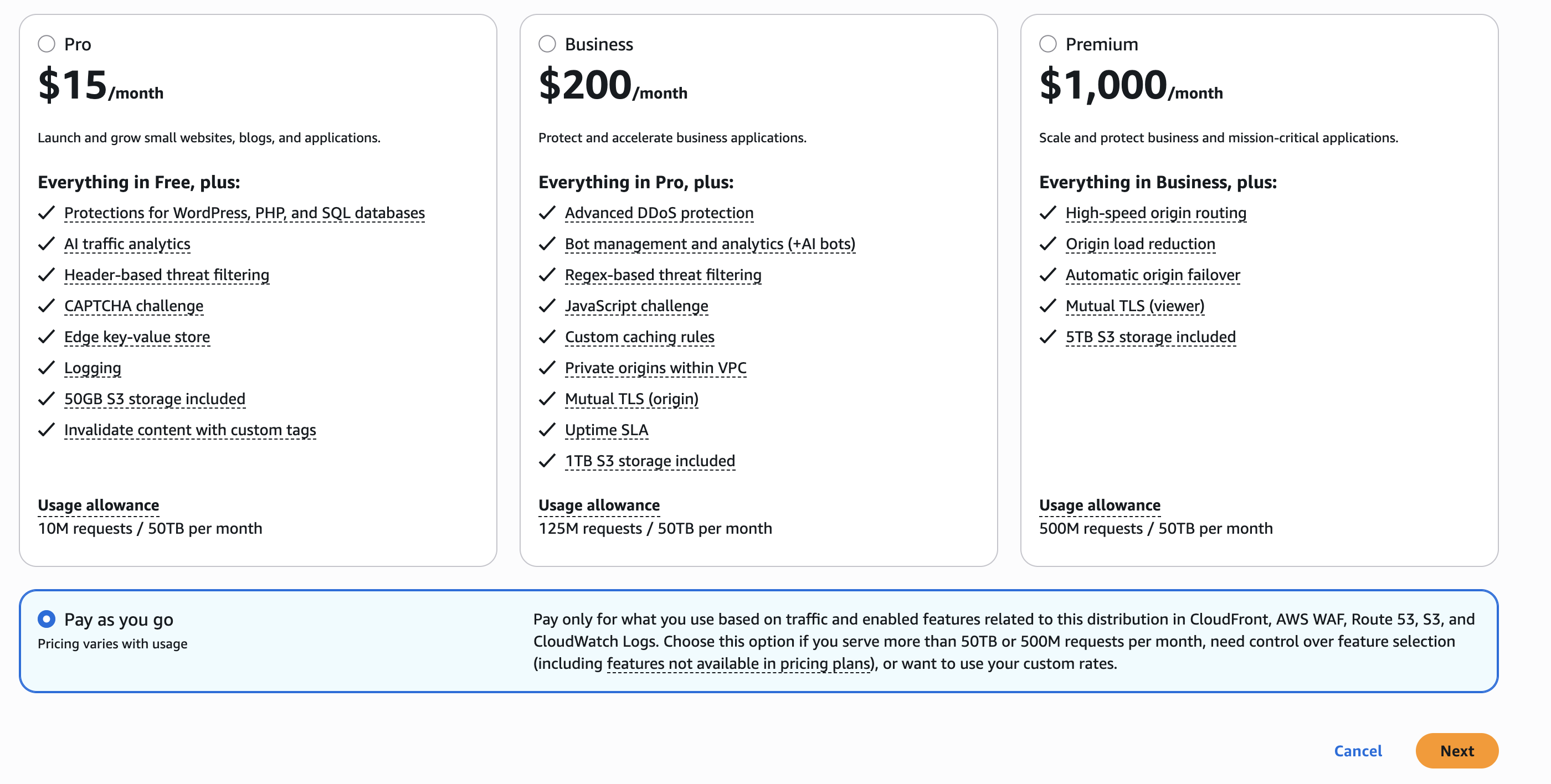

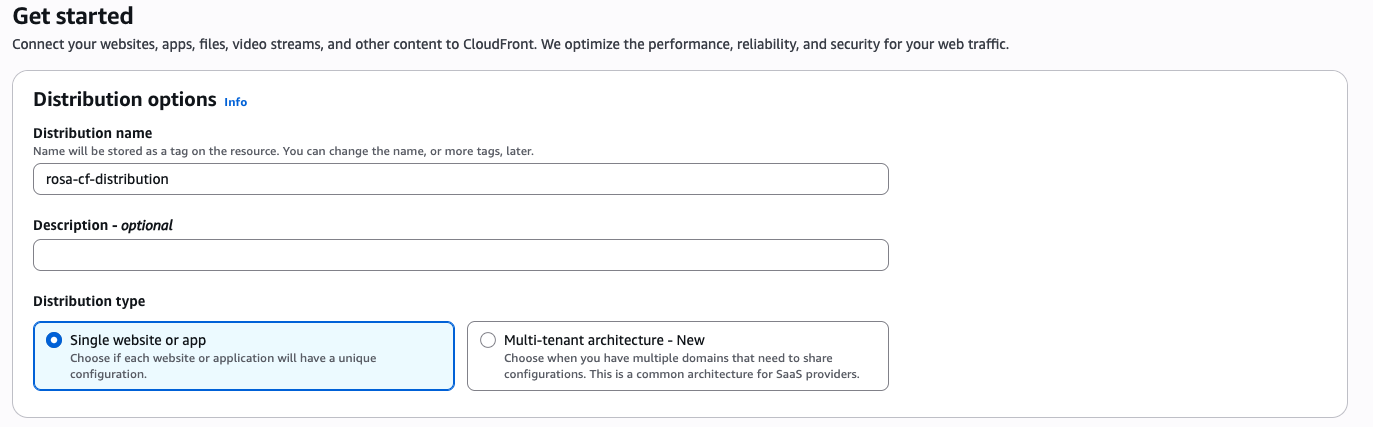

On the CloudFront sidebar, click Distributions, and hit Create distribution button on the upper right corner. Note that at the time of the writing, AWS actually just released a new UI for creating CloudFront distribution, however, this guide will show you how to create one using the previous/old one.

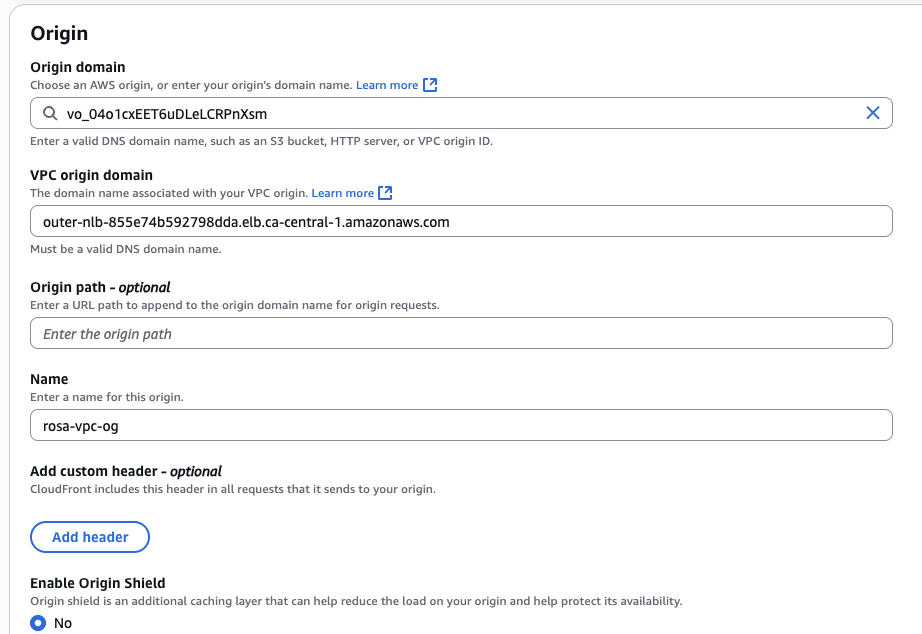

On the Origin section, under Origin domain look for the name of the VPC origin you created, e.g. rosa-vpc-og, select it and it will also auto-populate the VPC origin domain and the name below it. Leave the origin path to blanks and the rest of the origin settings to default.

vpcd-cr-0

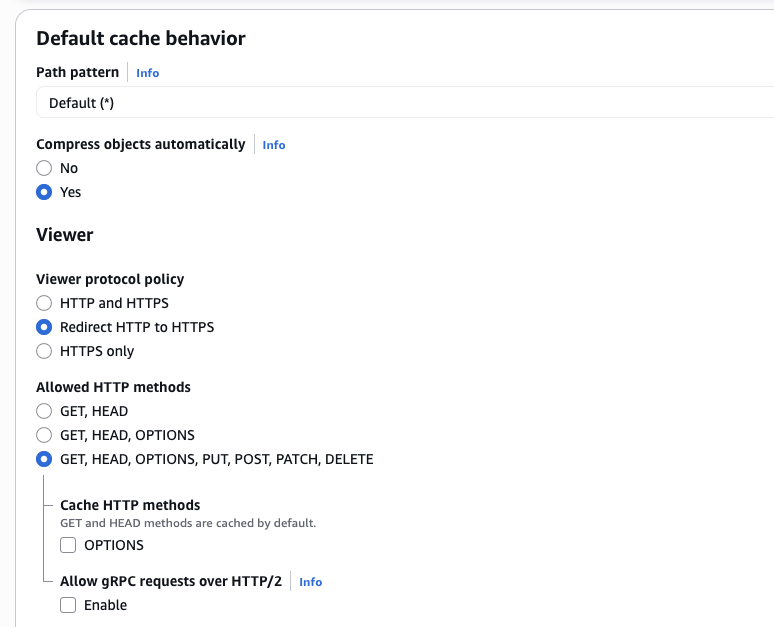

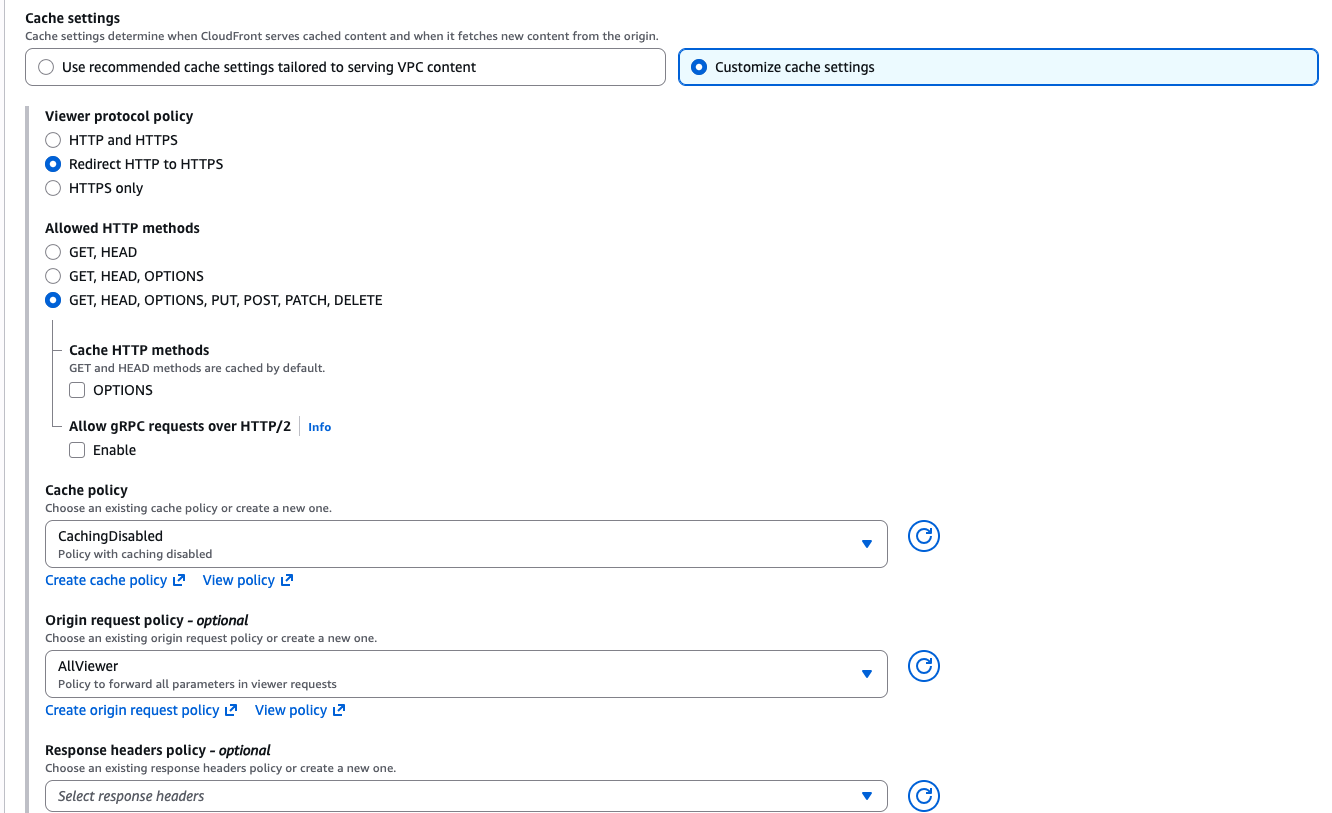

On the Default cache behavior section, under the Viewer part, choose Redirect HTTP to HTTPS for viewer protocol policy, and select GET, HEAD, OPTIONS, PUT, POST, PATCH, DELETE for allowed HTTP methods.

vpcd-cr-1

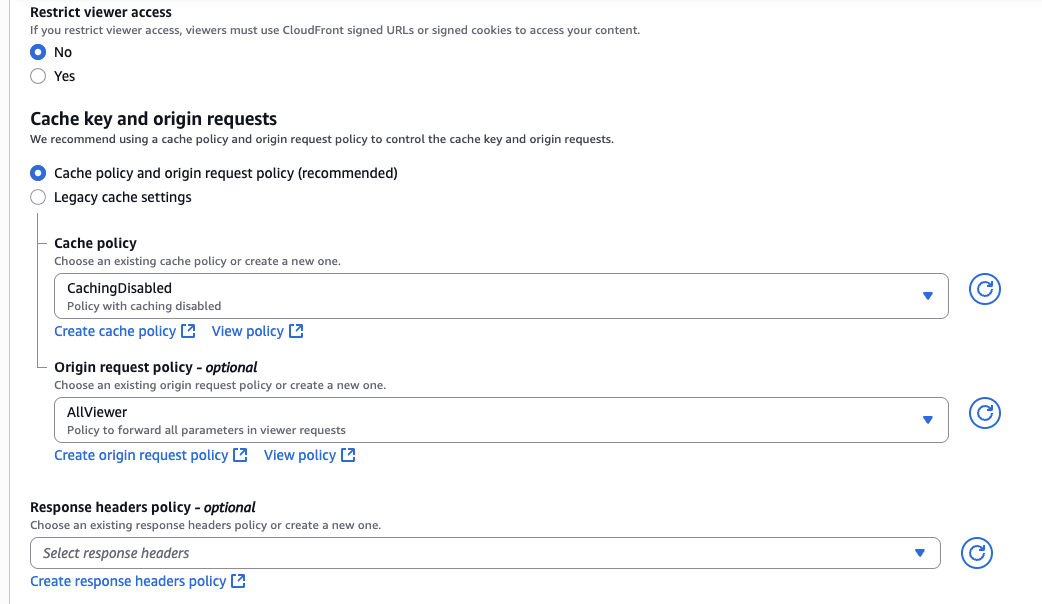

Then under the Cache key and origin requests, select CachingDisabled for the cache policy, and choose AllViewer for the origin request policy. Leave the rest of the settings to default.

vpcd-cr-2

On the Web Application Firewall (WAF) section, select Do not enable security protections. Note that you can always enable WAF after you created the distribution later but we are not covering it here for the sake of simplicity.

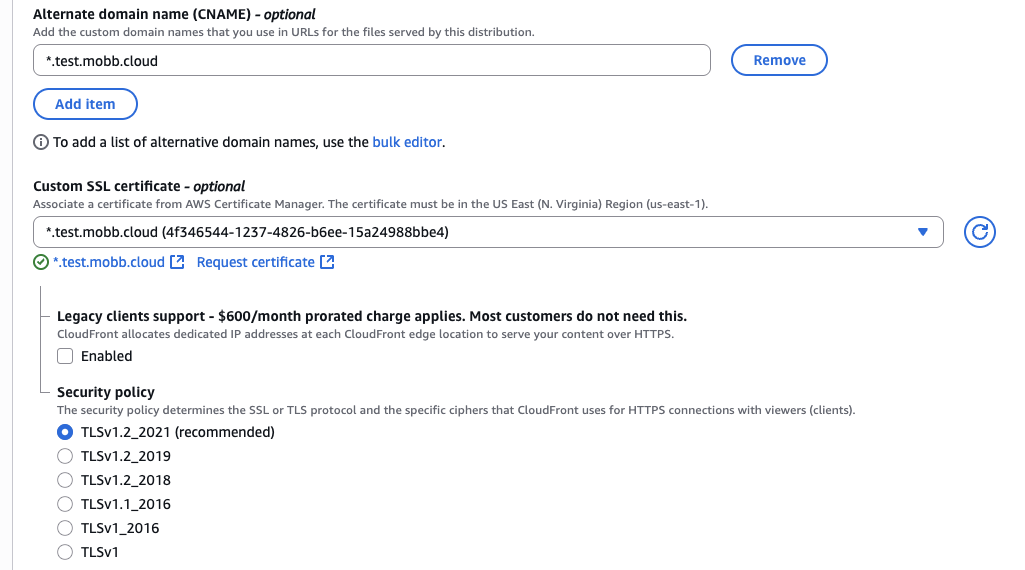

On the Settings section, under the alternate domain name (CNAME) part, click Add item button, and add your domain name there, along with the custom SSL certificate. See snippet below as an example. Leave the rest of the settings to default.

vpcd-cr-3

And finally, click the Create distribution button. And once it finished deploying, copy the Distribution domain name as you would need it for next step.

6. Create (or update) custom domain on Route 53

Skip this creation step if you have already created the custom domain. To create one, go to your AWS Console. Select Route 53 and choose a hosted zone, and from there, click Create record button.

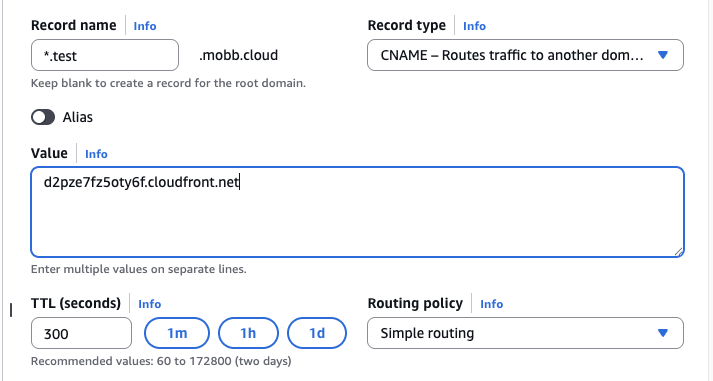

Here you will be creating a wildcard CNAME record (e.g. *.test.mobb.cloud) and point it to the CloudFront distribution domain name you just created, and click Save.

r53

If you have already the record previously, then simply paste/update the value to the CloudFront distribution.

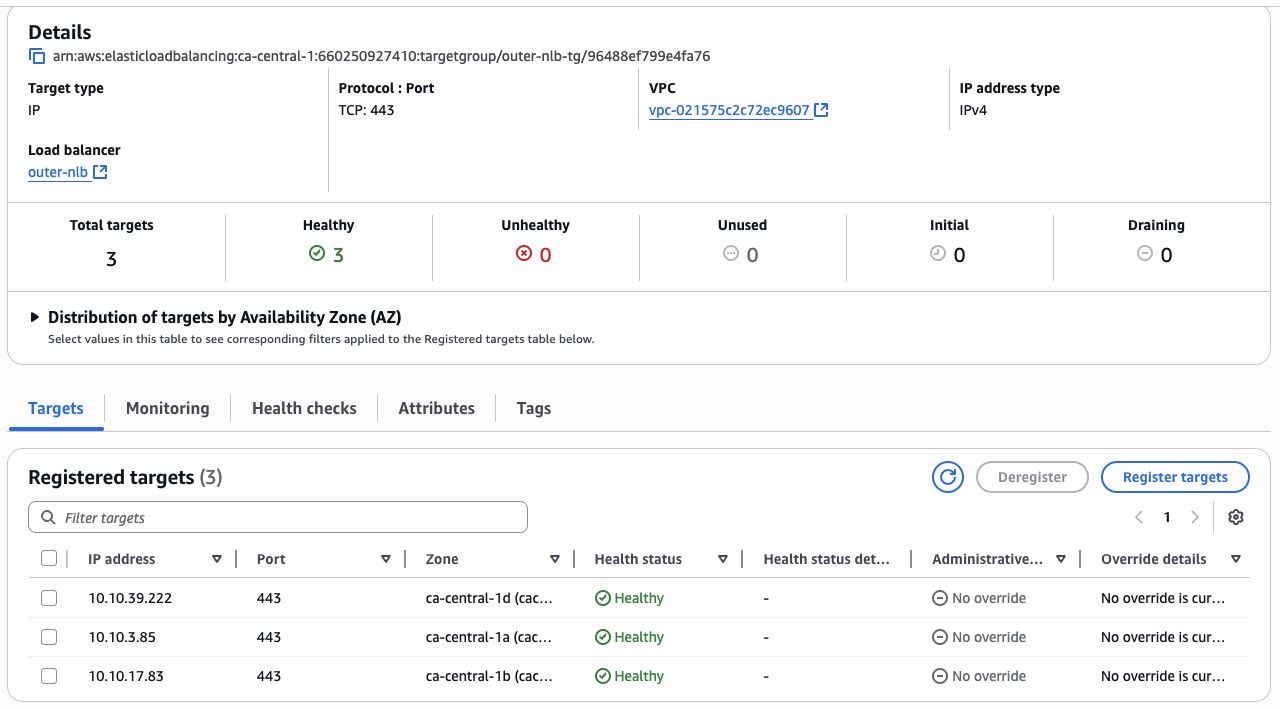

FYI, now if you look at the target group you created earlier, you should see the NLB health checks are healthy.

tg-healthy

7. Create Let’s Encrypt certificate

Next, let’s go back to CLI. Skip this step if you already have Let’s Encrypt Certificateexternal link (opens in new tab) . To create one, you would need to run certbot so please install it if you have not already (if you’re a Mac user, you can run brew install certbot).

First, create following directories:

sudo mkdir -p ~/letsencrypt/{config,work,logs}
sudo mkdir -p ~/openshift-certs

Then run the following as sudo to generate wildcard certificate. Change the email address to your email address.

sudo certbot certonly \
  --manual \
  --preferred-challenges=dns \
  --email email@example.com \
  --server https://acme-v02.api.letsencrypt.org/directory \
  --agree-tos \
  --config-dir ~/letsencrypt/config \
  --work-dir ~/letsencrypt/work \
  --logs-dir ~/letsencrypt/logs \
  -d "*.$DOMAIN" \
  -d "$DOMAIN"

It will then ask you to deploy a DNS TXT record under the name _acme-challenge.YOUR-DOMAIN with certain value provided by certbot. To do that, go to Route 53 and create a new record type TXT and point to that new value. Wait for a couple of minutes until it fully propagates.

Open a new CLI tab and run either:

dig TXT _acme-challenge.$DOMAIN

Or:

nslookup -type=TXT _acme-challenge.$DOMAIN

And see if the value matches. If it matches, then go back to the tab where you run certbot command, and hit Enter.

Once the certificate (fullchain.pem) and the key (privkey.pem) were successfully created, set the following permissions:

sudo chmod 700 ~/letsencrypt/config/live/$DOMAIN/
sudo chmod 600 ~/letsencrypt/config/live/$DOMAIN/privkey.pem

Then copy them for next step:

sudo cp ~/letsencrypt/config/live/$DOMAIN/fullchain.pem ~/openshift-certs/
sudo cp ~/letsencrypt/config/live/$DOMAIN/privkey.pem ~/openshift-certs/
sudo chown $(whoami):$(id -gn) ~/openshift-certs/*
chmod 644 ~/openshift-certs/fullchain.pem
chmod 600 ~/openshift-certs/privkey.pem

8. Configure certificate for inner NLB

Next, we are going to configure the certificate we created just now to the private ingress controller (inner NLB). To do that, let’s first create a TLS secret:

oc create secret tls ingress-certs \
  --cert=$HOME/openshift-certs/fullchain.pem \
  --key=$HOME/openshift-certs/privkey.pem \
  -n openshift-ingress

Then, patch it to the NLB:

oc patch ingresscontroller $INGRESS_NAME \
  -n openshift-ingress-operator \
  --type=merge \
  --patch='{"spec":{"defaultCertificate":{"name":"ingress-certs"}}}'

Wait for a few minutes until the router pods restart:

oc get pods -n openshift-ingress -w | grep $INGRESS_NAME

9. Test an application

Finally, let’s test this setup by creating a public application. Log in to the cluster to proceed with next steps.

  1. Create a new project

    oc new-project my-public-app

  2. Create a new application

    oc new-app --docker-image=docker.io/openshift/hello-openshift

  3. Create a route for the application

    oc create route edge --service=hello-openshift hello-openshift-tls \
      --hostname hello.$DOMAIN

  4. Check that you can access the application:

    curl https://hello.$DOMAIN


You should see the output Hello OpenShift!. Alternatively, go to your browser and access it from there.

hello
