Securely exposing an application on a private ROSA cluser with an AWS Network Load Balancer
This content is authored by Red Hat experts, but has not yet been tested on every supported configuration.
Continuation of Securely exposing an application on a private ROSA cluser with an AWS Network Load Balancer
These instructions go through setting up an additional VPC as part of the overall blog. If you already have a VPC that you would like to use, you can skip these instructions.

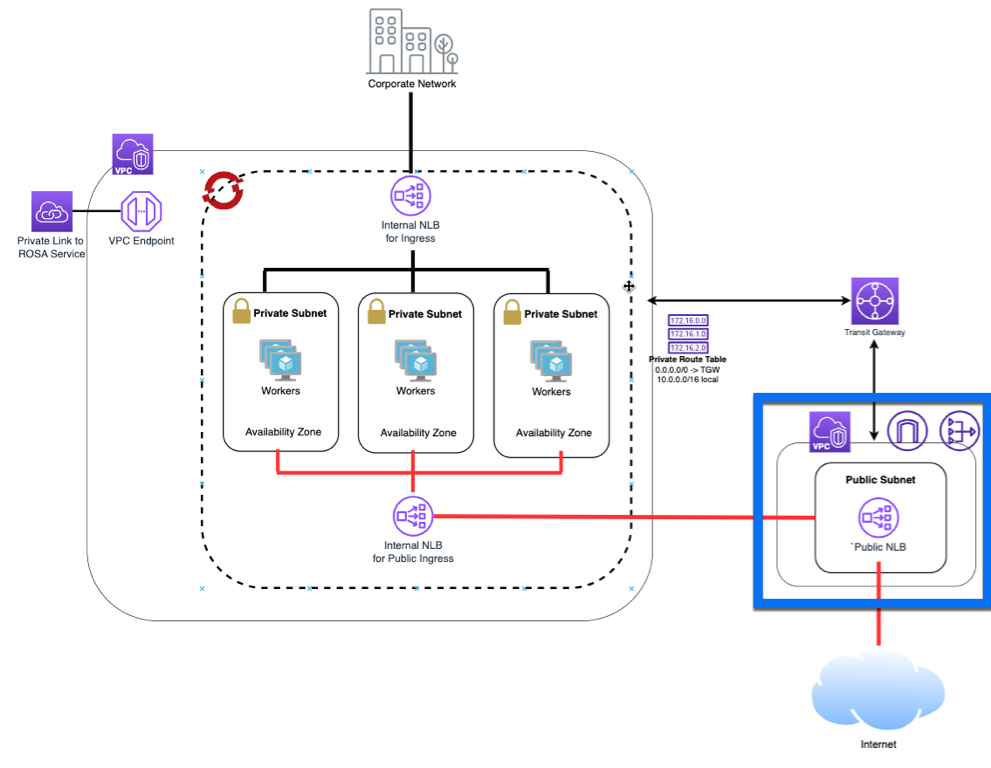

Looking at the overall architecture, this section will setup everything in the blue box.
Create a public VPC
The VPC we will be creating will have a VPC with a private subnet, a public subnet where the Network Load Balancer will sit, an Internet Gateway and a Nat Gateway.
Set Environment Variables
export NLB_VPC_NAME=nlb-vpc
export NLB_VPC_CIDR=10.5.0.0/16
export NLB_VPC_PUBLIC_SUBNET_CIDR=10.5.128.0/17
export NLB_VPC_PRIVATE_SUBNET_CIDR=10.5.0.0/17
This section also expects the ROSA_VPC_ID, ROSA_VPC_CIDR, ROSA_PRIVATE_R_TABLE_IDS, and ROSA_PRIVATE_SUBNET_IDS environment variables to be set which is done in the parent blog.
Create a VPC
export VPC_ID=`aws ec2 create-vpc --cidr-block $NLB_VPC_CIDR | jq -r .Vpc.VpcId`
aws ec2 create-tags --resources $VPC_ID \
--tags Key=Name,Value=${NLB_VPC_NAME} | jq .
aws ec2 modify-vpc-attribute --vpc-id $VPC_ID --enable-dns-hostnames | jq .
Create a Public Subnet for the cluster to NAT egress traffic out of
PUBLIC_SUBNET=`aws ec2 create-subnet --vpc-id $VPC_ID --cidr-block $NLB_VPC_PUBLIC_SUBNET_CIDR | jq -r .Subnet.SubnetId`
aws ec2 create-tags --resources $PUBLIC_SUBNET \
--tags Key=Name,Value=${NLB_VPC_NAME}-public | jq .
Create a Private Subnet for a jump host
PRIVATE_SUBNET=`aws ec2 create-subnet --vpc-id $VPC_ID --cidr-block $NLB_VPC_PRIVATE_SUBNET_CIDR | jq -r .Subnet.SubnetId`
aws ec2 create-tags --resources $PRIVATE_SUBNET \
--tags Key=Name,Value=${NLB_VPC_NAME}-private | jq .
Create an Internet Gateway for NAT egress traffic
I_GW=`aws ec2 create-internet-gateway | jq -r .InternetGateway.InternetGatewayId`
aws ec2 attach-internet-gateway --vpc-id $VPC_ID --internet-gateway-id $I_GW | jq .
aws ec2 create-tags --resources $I_GW \
--tags Key=Name,Value=${NLB_VPC_NAME} | jq .
Create a Route Table for NAT egress traffic
R_TABLE=`aws ec2 create-route-table --vpc-id $VPC_ID | jq -r .RouteTable.RouteTableId`
aws ec2 create-route --route-table-id $R_TABLE --destination-cidr-block 0.0.0.0/0 --gateway-id $I_GW | jq .
aws ec2 describe-route-tables --route-table-id $R_TABLE | jq .
aws ec2 associate-route-table --subnet-id $PUBLIC_SUBNET --route-table-id $R_TABLE | jq .
aws ec2 create-tags --resources $R_TABLE \
--tags Key=Name,Value=${NLB_VPC_NAME} | jq .
Create a NAT Gateway for the Private network
EIP=`aws ec2 allocate-address --domain vpc | jq -r .AllocationId`
NAT_GW=`aws ec2 create-nat-gateway --subnet-id $PUBLIC_SUBNET \
--allocation-id $EIP | jq -r .NatGateway.NatGatewayId`
aws ec2 create-tags --resources $EIP --resources $NAT_GW \
--tags Key=Name,Value=${NLB_VPC_NAME} | jq .
Create a Route Table for the Private subnet to the NAT
R_TABLE_NAT=`aws ec2 create-route-table --vpc-id $VPC_ID | jq -r .RouteTable.RouteTableId`
aws ec2 create-route --route-table-id $R_TABLE_NAT --destination-cidr-block 0.0.0.0/0 --gateway-id $NAT_GW | jq .
aws ec2 associate-route-table --subnet-id $PRIVATE_SUBNET --route-table-id $R_TABLE_NAT | jq .
aws ec2 create-tags --resources $R_TABLE_NAT $EIP \
--tags Key=Name,Value=${NLB_VPC_NAME}-private | jq .
Peer the ROSA VPC with the NLB VPC
note: this tutotial will use a classic peering connection, a transit gateway can also be used.
PEER_VPC_ID=$(aws ec2 create-vpc-peering-connection --vpc-id $VPC_ID --peer-vpc-id $ROSA_VPC_ID --query VpcPeeringConnection.VpcPeeringConnectionId --output text)
aws ec2 accept-vpc-peering-connection --vpc-peering-connection-id $PEER_VPC_ID
aws ec2 create-tags --resources $PEER_VPC_ID --tags 'Key=Name,Value=peer-VPC'
Adding the private VPC CIDR block to our public VPC route table as destination
aws ec2 create-route --route-table-id $R_TABLE --destination-cidr-block ${ROSA_VPC_CIDR} --vpc-peering-connection-id $PEER_VPC_ID
aws ec2 associate-route-table --route-table-id ${R_TABLE} --subnet-id ${PRIVATE_SUBNET};
for i in 1 2 3; do
SUBNET=$(echo ${ROSA_PRIVATE_SUBNET_IDS} | sed -n ${i}p);
ROUTE_TABLE=$(echo ${ROSA_PRIVATE_R_TABLE_IDS} | sed -n ${i}p);
aws ec2 create-route --route-table-id ${ROUTE_TABLE} --destination-cidr-block ${NLB_VPC_CIDR} --vpc-peering-connection-id $PEER_VPC_ID;
aws ec2 associate-route-table --route-table-id ${ROUTE_TABLE} --subnet-id ${SUBNET};
done
