ROSA with Nvidia GPU Workloads

ROSA guide to running Nvidia GPU workloads.

Prerequisites

ROSA Cluster (4.14+)
rosa cli #logged-in
oc cli #logged-in-cluster-admin
jq

If you need to install a ROSA cluster, please read our ROSA Quickstart Guide , or better yet Use Terraform to create an HCP Cluster .

Enter the oc login command, username, and password from the output of the previous command:

Example login:

oc login https://api.cluster_name.t6k4.i1.organization.org:6443 \
> --username cluster-admin \
> --password mypa55w0rd
Login successful.
You have access to 77 projects, the list has been suppressed. You can list all projects with ' projects'

Linux:

sudo dnf install jq

MacOS

brew install jq

Helm Prerequisites

If you do not want to use Helm you can follow the steps in the Manual section.

Add the MOBB chart repository to your Helm

helm repo add mobb https://rh-mobb.github.io/helm-charts/

Update your repositories
```
helm repo update
```

GPU Quota

View the list of supported GPU instance types in ROSA
```
rosa list instance-types | grep accelerated
```
Select a GPU instance type
The guide uses g5.xlarge as an example. Please be mindful of the GPU cost of the type you choose.
```
export GPU_INSTANCE_TYPE='g5.xlarge'
```
Login to AWS
Login to AWS Console , type “quotas” in search by, click on “Service Quotas” -> “AWS services” -> “Amazon Elastic Compute Cloud (Amazon EC2). Search for “Running On-Demand [instance-family] instances” (e.g. Running On-Demand G and VT instances).
Please remember that when you request quota that AWS is per core. As an example, to request a single g5.xlarge, you will need to request quota in groups of 4; to request a single g5.8xlarge, you will need to request quota in groups of 32.
Verify quota and request increase if necessary

GPU Machine Pool

Set environment variables

export CLUSTER_NAME=<YOUR-CLUSTER>
export MACHINE_POOL_NAME=nvidia-gpu-pool
export MACHINE_POOL_REPLICA_COUNT=1

Create GPU machine pool

rosa create machinepool --cluster=$CLUSTER_NAME \
  --name=$MACHINE_POOL_NAME \
  --replicas=$MACHINE_POOL_REPLICA_COUNT \
  --instance-type=$GPU_INSTANCE_TYPE \
  --taints "nvidia.com/gpu=present:NoSchedule"

Verify GPU machine pool

It may take 10-15 minutes to provision a new GPU machine. If this step fails, please login to the AWS Console and ensure you didn’t run across availability issues. You can go to EC2 and search for instances by cluster name to see the instance state.

echo "waiting for machine pool to be ready"
while true; do
  response=$(rosa describe machinepool -c "${CLUSTER_NAME}" \
      "${MACHINE_POOL_NAME}" -o json | jq .status.current_replicas)
  if [[ "${response}" != "0" ]]; then
    break
  fi
  echo -n .
  sleep 1
done
rosa describe machinepool -c "${CLUSTER_NAME}" "${MACHINE_POOL_NAME}"

Double check that the cluster shows the node as ready

watch oc get nodes -l "node.kubernetes.io/instance-type=$GPU_INSTANCE_TYPE"

NAME                                        STATUS   ROLES    AGE     VERSION
ip-10-10-4-167.us-east-2.compute.internal   Ready    worker   4m28s   v1.28.9+2f7b992

Install and Configure Nvidia GPU

This section configures the Node Feature Discovery Operator (to allow OpenShift to discover the GPU nodes) and the Nvidia GPU Operator.

Create namespaces

oc create namespace openshift-nfd
oc create namespace nvidia-gpu-operator

Use the mobb/operatorhub chart to deploy the needed operators

helm upgrade -n nvidia-gpu-operator nvidia-gpu-operator \
  mobb/operatorhub --install \
  --values https://raw.githubusercontent.com/rh-mobb/helm-charts/main/charts/nvidia-gpu/files/operatorhub.yaml

Wait until the two operators are running

Note: If you see an error like Error from server (NotFound): deployments.apps "nfd-controller-manager" not found, wait a few minutes and try again.

oc wait --for=jsonpath='{.status.replicas}'=1 deployment \
  nfd-controller-manager -n openshift-nfd --timeout=600s

oc wait --for=jsonpath='{.status.replicas}'=1 deployment \
  gpu-operator -n nvidia-gpu-operator --timeout=600s

Install the Nvidia GPU Operator chart

helm upgrade --install -n nvidia-gpu-operator nvidia-gpu \
  mobb/nvidia-gpu --disable-openapi-validation

Wait until NFD instances are ready

oc wait --for=jsonpath='{.status.replicas}'=1 deployment \
  nfd-master -n openshift-nfd --timeout=600s

NODES=$(oc get nodes -l "node-role.kubernetes.io/worker=" -o json | jq '.items | length')
oc wait --for=jsonpath='{.status.numberReady}'=${NODES} \
  daemonset nfd-worker -n openshift-nfd --timeout=600s

Wait until Cluster Policy is ready

Note: This step may take a few minutes to complete.

oc wait --for=jsonpath='{.status.state}'=ready clusterpolicy \
  gpu-cluster-policy -n nvidia-gpu-operator --timeout=600s

Validate GPU

Verify NFD can see your GPU(s)

oc describe node -l node.kubernetes.io/instance-type=$GPU_INSTANCE_TYPE \
  | egrep 'Roles|pci-10de' | grep -v master

You should see output like:

Roles:              worker
                    feature.node.kubernetes.io/pci-10de.present=true

Verify GPU Operator added node label to your GPU nodes
```
oc get node -l nvidia.com/gpu.present
```

[Optional] Test GPU access using Nvidia SMI

for i in $(oc -n nvidia-gpu-operator get pod -lopenshift.driver-toolkit=true --no-headers |awk '{print $1}'); do echo $i; oc exec -n nvidia-gpu-operator -it $i -- nvidia-smi ; echo -e '\n' ;  done

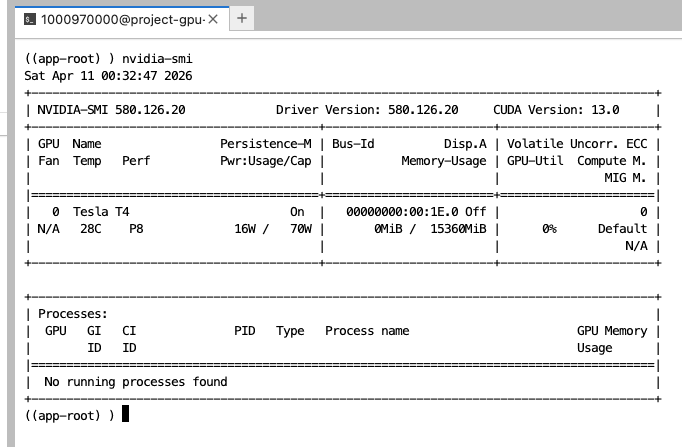

You should see output that shows the GPUs available on the host such as this example screenshot. (Varies depending on GPU worker type)

Create Pod to run a GPU workload

cat <<EOF | oc create -f -
apiVersion: v1
kind: Pod
metadata:
  name: cuda-vector-add
  namespace: nvidia-gpu-operator
spec:
  restartPolicy: OnFailure
  containers:
    - name: cuda-vector-add
      image: "nvidia/samples:vectoradd-cuda11.2.1"
      resources:
        limits:
          nvidia.com/gpu: 1
      nodeSelector:
        nvidia.com/gpu.present: true
  tolerations:
  - key: "nvidia.com/gpu"
    operator: "Equal"
    value: "present"
    effect: "NoSchedule"
EOF

View logs
```
oc logs cuda-vector-add --tail=-1 -n nvidia-gpu-operator
```
Please note, if you get an error “Error from server (BadRequest): container “cuda-vector-add” in pod “cuda-vector-add” is waiting to start: ContainerCreating” try running “oc delete pod cuda-vector-add” and then re-run the create statement above. We’ve seen issues where if this step is ran before all of the operator consolidation is done it may just sit there.
You should see Output like the following (mary vary depending on GPU):
```
[Vector addition of 5000 elements]
Copy input data from the host memory to the CUDA device
CUDA kernel launch with 196 blocks of 256 threads
Copy output data from the CUDA device to the host memory
Test PASSED
Done
```

If successful, the pod can be deleted

oc delete pod cuda-vector-add -n nvidia-gpu-operator
