Accessing the ROSA HCP API Server from a Different AWS Account

Introduction

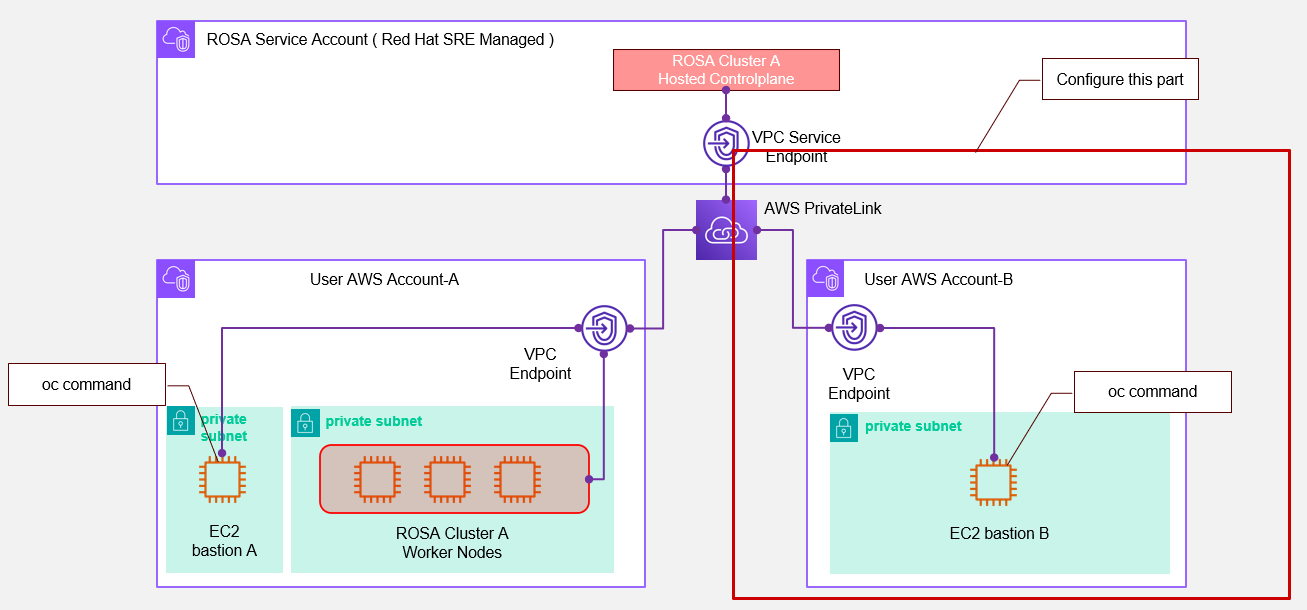

You can create a ROSA HCP cluster in one AWS account and configure it to allow access from a different AWS account using the oc command. This guide walks you through the actual AWS setup.

Note: AWS environments vary, so consider this as one possible setup.

Prerequisites

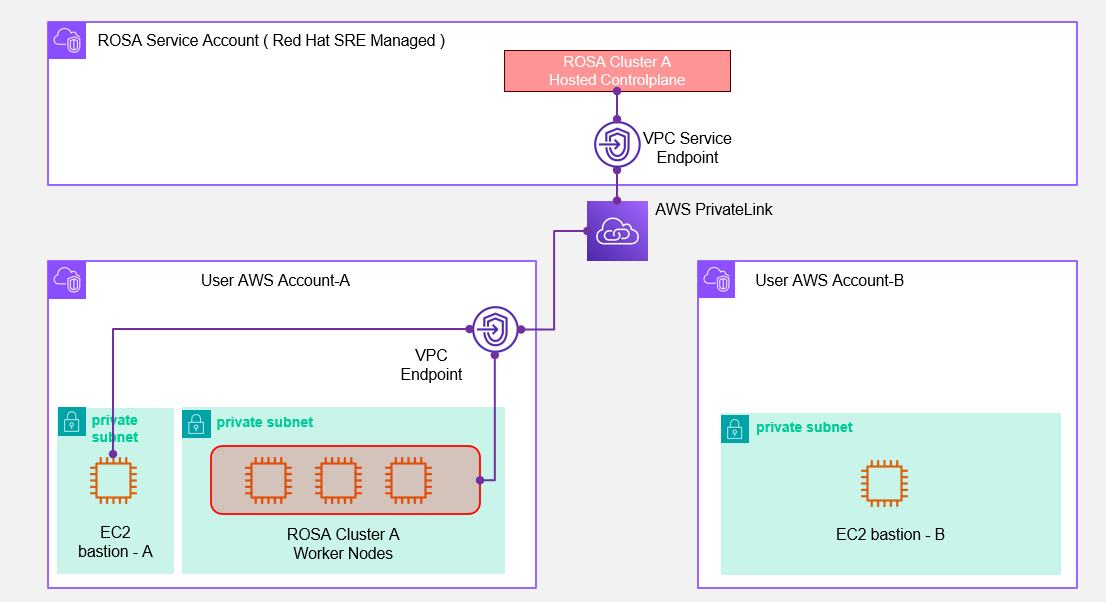

A ROSA HCP cluster has been already deployed in AWS Account-A, and the following AWS resources are available. ROSA HCP 4.19.0 was used for this guide.

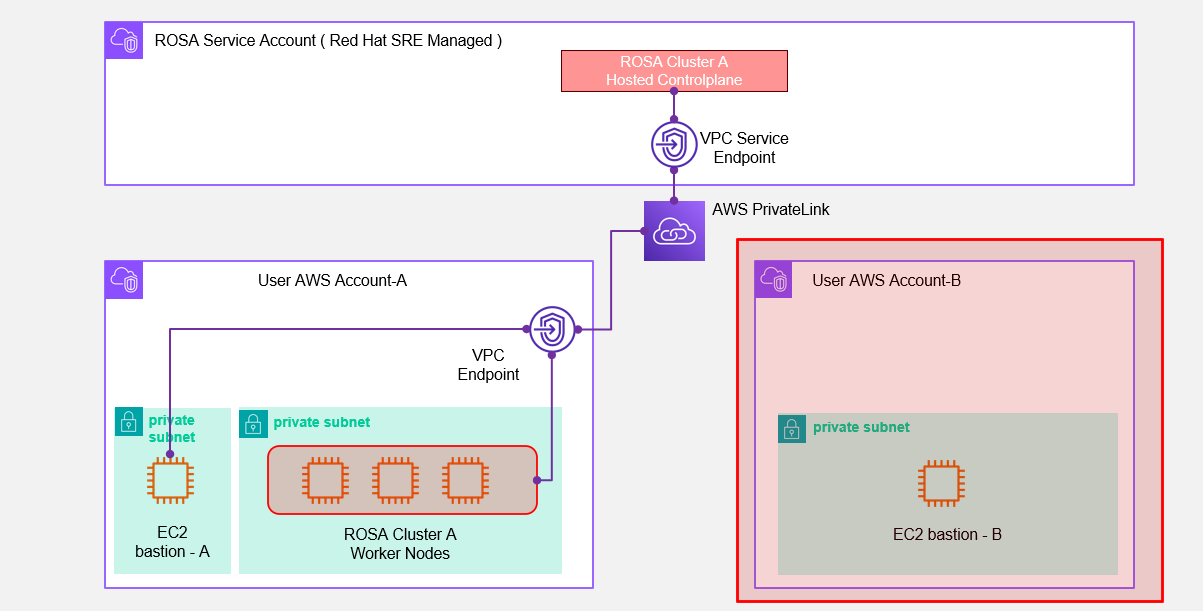

Setup on AWS Account‑B

This section covers the steps in AWS Account-B

Prepare necessary tools on Bastion-B

1. On the EC2 bastion instance (bastion-B), install the required tools

   curl -LO https://mirror.openshift.com/pub/openshift-v4/clients/rosa/latest/rosa-linux.tar.gz
   tar -zxf rosa-linux.tar.gz
   sudo mv ./rosa /usr/local/bin/
   rosa download oc
   tar -xzf openshift-client-linux.tar.gz
   sudo mv ./oc /usr/local/bin
   sudo mv ./kubectl /usr/local/bin


2. Verify the installation

   oc version


   (Note: cluster connection is not yet possible.)

3. Create an IAM Policy

   Create a policy file in json ( vpce-policy.json)

   cat > vpce-policy.json <<EOF
   {
     "Version": "2012-10-17",
     "Statement": [
       {
         "Sid": "VisualEditor0",
         "Effect": "Allow",
         "Action": [
           "vpce:*",
           "ec2:CreateVpcEndpointServiceConfiguration",
           "ec2:CreateVpcEndpoint",
           "ec2:CreateVpcEndpointConnectionNotification"
         ],
         "Resource": "*"
       }
     ]
   }
   EOF


4. Create an IAM Policy from the json file

   IAM_POLICY_ARN=$(aws iam create-policy \
     --policy-name ROSAHcpVPCEndpointPolicy \
     --policy-document file://vpce-policy.json \
     --query 'Policy.Arn' \
     --output text)


Create an IAM Role

1. Get your current IAMUser ARN

   IAMUSER_ARN=$(aws sts get-caller-identity \
     --query "Arn" \
     --output text)


2. Create a trust relationship file (trust-policy.json)

   cat > trust-policy.json <<EOF
   {
     "Version": "2012-10-17",
     "Statement": [
       {
         "Effect": "Allow",
         "Principal": {
           "AWS": "$IAMUSER_ARN"
         },
         "Action": "sts:AssumeRole"
       }
     ]
   }
   EOF


3. Create an IAM Role

   IAM_ROLE_ARN=$(aws iam create-role \
     --role-name ROSAHcpVPCEndpointRole \
     --assume-role-policy-document file://trust-policy.json \
     --query 'Role.Arn' \
     --output text)
   echo $IAM_ROLE_ARN  # e.g. arn:aws:iam::822827512345:role/ROSAHcpVPCEndpointRole


4. Attach the IAM Policy to the IAM Role

   aws iam attach-role-policy \
     --role-name ROSAHcpVPCEndpointRole \
     --policy-arn $IAM_POLICY_ARN


Configure AWS CLI to Assume the IAM Role

1. Add a new profile in ~/.aws/config to assume the IAM Role created in the previous step.

   [default]
   region = <AWS Region>

   [profile myprofile]
   role_arn = <IAM_ROLE_ARN>
   source_profile = default
   region = <AWS Region>


Setup on AWS Account‑A

Switch to AWS Account-A, where the ROSA cluster resides

Register the IAM Role with ROSA

1. Run On Bastion-A (or any rosa-enabled host) to set some environmental variables.

   CLUSTER_NAME=$(rosa list clusters -o json | jq -r '.[0].name')
   IAM_ROLE_ARN=<role ARN from Account-B>
   rosa edit cluster -c $CLUSTER_NAME --additional-allowed-principals $IAM_ROLE_ARN
   rosa describe cluster -c $CLUSTER_NAME | grep "Additional Principals:"


2. Get the VPC Endpoint Service Name for the ROSA hosted controlplane.

   aws ec2 describe-vpc-endpoints \
     --query "VpcEndpoints[*].[VpcEndpointId, ServiceName]" \
     --output table


   ( Note: The service name is like com.amazonaws.vpce.<Your AWS region>.vpce-svc-....)

3. Fetch the API URL for ROSA Cluster

   rosa describe cluster -c $CLUSTER_NAME -o json | jq -r '.api.url'


   Expect something like: https://api.rosahcp.<id>.openshiftapps.com:443

Back to AWS Account‑B

Continue in Account-B

Create a VPC Endpoint

1. Set some environment variables

   SERVICE_NAME=<from Account-A>
   INSTANCE_ID=<bastion-B EC2 ID>
   SUBNET_ID=$(aws ec2 describe-instances …)
   SUBNET_CIDR=$(aws ec2 describe-subnets …)
   VPC_ID=$(…)


2. Make sure the variables are set

   echo "VPC_ID=$VPC_ID, SERVICE_NAME=$SERVICE_NAME, SUBNET_ID=$SUBNET_ID, SUBNET_CIDR=$SUBNET_CIDR"


3. Create a security group for the VPC Endpoint

   SEC_GROUP_ID=$(aws ec2 create-security-group \
     --group-name MyVPCEndpointSG \
     --description "Security Group for VPC Endpoint" \
     --vpc-id $VPC_ID \
     --tag-specifications 'ResourceType=security-group,Tags=[{Key=Name,Value=MyVPCEndpointSG}]' \
     --query 'GroupId' \
     --output text)


4. Allow inbound traffic from the subnet

   aws ec2 authorize-security-group-ingress \
     --group-id $SEC_GROUP_ID \
     --protocol tcp \
     --port 443 \
     --cidr $SUBNET_CIDR


   (Note: You can customize the rule depending your need. This is just an example.)

5. Create an interface endpoint, using the myprofile role

   ENDPOINT_ID=$(aws ec2 create-vpc-endpoint \
     --vpc-id $VPC_ID \
     --service-name $SERVICE_NAME \
     --vpc-endpoint-type Interface \
     --subnet-ids $SUBNET_ID \
     --security-group-ids $SEC_GROUP_ID \
     --query 'VpcEndpoint.VpcEndpointId' \
     --output text \
     --profile myprofile)


   (Note: You run the command with --profile myprofile to assume the IAM Role you created in the previous step)

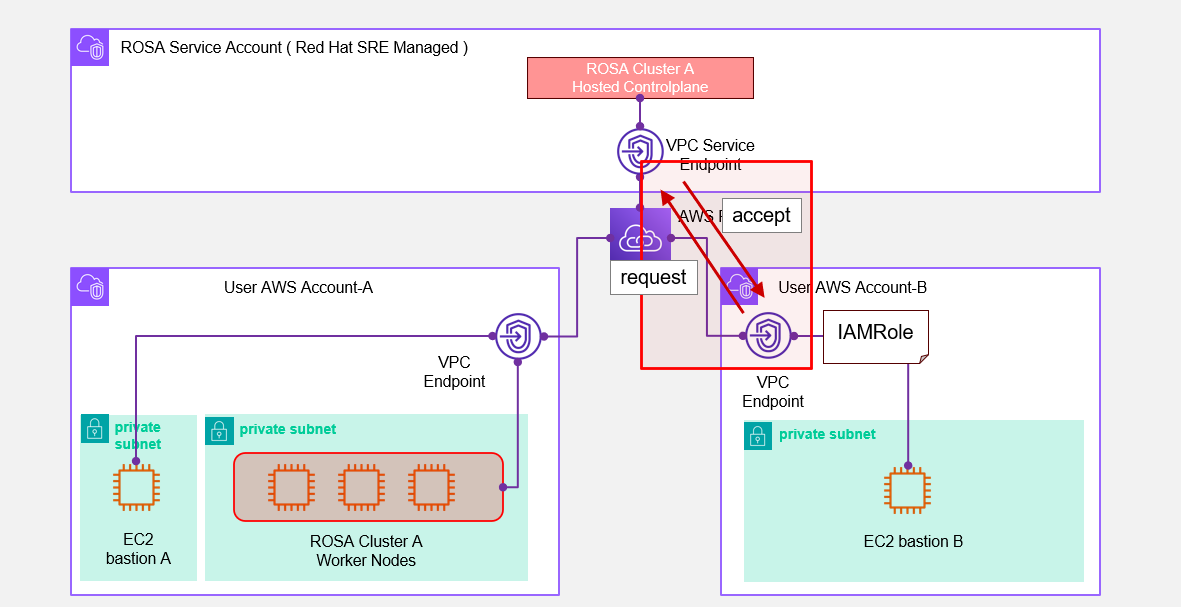

   If there are no errors, the VPC endpoint will be created. The request to connect the hosted control plane VPC service endpoint will be automatically accepted if the IAM role is configured correctly.

Create a Private DNS Zone in Route 53

1. Fetch the VPC endpoint DNS name

   ENDPOINT_DNS=$(aws ec2 describe-vpc-endpoints \
     --vpc-endpoint-ids $ENDPOINT_ID \
     --query 'VpcEndpoints[0].DnsEntries[0].DnsName' \
     --output text)


2. Extract the domain from the API URL

   API_URL=<ROSA API URL>
   DOMAIN=$(echo $API_URL | cut -d '/' -f3 | sed 's/^api\.//;s/:.*//')


3. Set the AWS region of the AWS account-B

   REGION=<AWS Region of AWS account-B>


4. Make sure the variables are set before proceeding

   echo "DOMAIN=$DOMAIN, REGION=$REGION, VPC_ID=$VPC_ID"


5. Create a Route 53 private hosted zone

   HOSTED_ZONE_ID=$(aws route53 create-hosted-zone \
     --name $DOMAIN \
     --vpc VPCRegion=$REGION,VPCId=$VPC_ID \
     --caller-reference $(date +%s) \
     --hosted-zone-config PrivateZone=true \
     --query 'HostedZone.Id' \
     --output text | cut -d'/' -f3)


6. Create DNS records

   cat > record.json <<EOF
   {
     "Changes": [
       {
         "Action": "CREATE",
         "ResourceRecordSet": {
           "Name": "api.$DOMAIN",
           "Type": "CNAME",
           "TTL": 300,
           "ResourceRecords": [ { "Value": "$ENDPOINT_DNS" } ]
         }
       },
       {
         "Action": "CREATE",
         "ResourceRecordSet": {
           "Name": "oauth.$DOMAIN",
           "Type": "CNAME",
           "TTL": 300,
           "ResourceRecords": [ { "Value": "$ENDPOINT_DNS" } ]
         }
       }
     ]
   }
   EOF

   aws route53 change-resource-record-sets \
     --hosted-zone-id $HOSTED_ZONE_ID \
     --change-batch file://record.json


   The DNS records for api.<DOMAIN> and oauth.<DOMAIN> are resovled to the VPC endpoint, and the traffic is routed to the Hosted Ccontrolplane managed by Red Hat SRE.

Verify Connection

1. Test access from bastion-B to the hosted controlplane

   oc login $API_URL --username cluster-admin --password <password>
