Deploy ROSA with Red Hat Advanced Cluster Management for Kubernetes

Last edited
Published
Authors
Kevin Collins,
Michael McNeill,
Kumudu Herath
Tags: AWS ROSA

This content is authored by Red Hat experts, but has not yet been tested on every supported configuration.

In the dynamic world of cloud-native development, efficiently managing Kubernetes clusters across diverse environments is paramount. This blog post dives into a powerful combination: deploying Red Hat OpenShift Service on AWS (ROSA) Hosted Control Planes (HCP) clusters, orchestrated and governed by Red Hat Advanced Cluster Management for Kubernetes (RHACM). This approach offers a compelling suite of benefits, including significant cost reductions by offloading control plane management to Red Hat, accelerated cluster provisioning times, and enhanced operational efficiency through a centralized management plane. By leveraging ROSA HCP with RHACM, organizations can achieve a more streamlined, secure, and scalable Kubernetes footprint on AWS, allowing teams to focus more on innovation and less on infrastructure overhead.

Pre-requisites

  1. You will need a a ROSA Cluster (see Deploying ROSA HCP with Terraform if you need help creating one).

  2. Log into the ROSA cluster

  3. AWS CLI logged into

  4. Terraform CLI

  5. Git CLI

  6. An OCM Service Account ClientID and Client Secret - if you don’t have one, you can create a service account by visiting here

After logging in with the OCM Service Account, make sure to link the ROSA OCM role. To list your OCM roles

rosa list ocm-role

and then to link the role run with the ocm role arn:

rosa link user-role arn:aws:iam::...
  1. Set environment variables
export ACM_CLUSTER_NAME=rosa-hcp-1
export NEW_ROSA_CLUSTER_NAME=new-hcp
export ROSA_VERSION=4.19.0
export ROSA_REGION=us-east-1
export AWS_ACCOUNT_ID=$(aws sts get-caller-identity --query Account --output text)
export OIDC_PROVIDER=$(oc get authentication.config.openshift.io cluster -o json | jq -r .spec.serviceAccountIssuer | sed 's/https:\/\///')
ROSA_API_SERVER=$(oc config view --minify -o jsonpath='{.clusters[*].cluster.server}')
export OCM_CLIENT_ID= # SERVICE ACCOUNT CLIENT ID
export OCM_CLIENT_SECRET= # SERVICE ACCOUNT CLIENT SECRET

Install and Configure ACM

  1. Deploy the Red Hat Advanced Cluster Management for Kubernetes Operator

    cat << EOF | oc apply -f -
apiVersion: v1
kind: Namespace
metadata:
  name: open-cluster-management
---
apiVersion: operators.coreos.com/v1
kind: OperatorGroup
metadata:
  name: open-cluster-management-operator-group
  namespace: open-cluster-management
spec:
  targetNamespaces:
    - open-cluster-management
---
apiVersion: operators.coreos.com/v1alpha1
kind: Subscription
metadata:
  name: acm-operator-subscription
  namespace: open-cluster-management
spec:
  source: redhat-operators
  sourceNamespace: openshift-marketplace
  name: advanced-cluster-management
  channel: "release-2.13"
  installPlanApproval: Automatic
EOF

  2. Create a MultiClusterHub Instance

    cat << EOF | oc apply -f -
apiVersion: operator.open-cluster-management.io/v1
kind: MultiClusterHub
metadata:
  name: multiclusterhub # You can customize the name
  namespace: open-cluster-management # Must match the namespace where the operator is installed
spec: {}
EOF

    Before continuing, wait for the multicluster engine to complete

    oc wait --for=jsonpath='{.status.phase}'='Running' MultiClusterHub multiclusterhub -n open-cluster-management

  3. Patch the multiclusterengine to support preview APIs

oc patch multiclusterengine multiclusterengine --type=merge -p '{"spec":{"overrides":{"components":[{"name":"cluster-api-provider-aws-preview","enabled":true},{"name":"cluster-api-preview","enabled":true}]}}}'

oc patch multiclusterengine multiclusterengine --type=merge -p '{"spec":{"overrides":{"components":[{"name":"cluster-api-preview","enabled":true}]}}}'
  1. Annotate the multiclusterengine to respect IRSA credentails
oc annotate mce multiclusterengine installer.multicluster.openshift.io/pause=true

Configure AWS Credentails

  1. Create a trust policy
   cat <<EOF > ./trust.json
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Federated": "arn:aws:iam::${AWS_ACCOUNT_ID}:oidc-provider/${OIDC_PROVIDER}"
      },
      "Action": "sts:AssumeRoleWithWebIdentity",
      "Condition": {
        "StringEquals": {
          "${OIDC_PROVIDER}:sub": "system:serviceaccount:multicluster-engine:capa-controller-manager"
        }
      }
    }
  ]
}
EOF
  1. Create a role with a trust policy for RHACM to use
CAPA_ROLE=$(aws iam create-role --role-name "capa-manager-role-${ACM_CLUSTER_NAME}" --assume-role-policy-document file://trust.json --description "AWS Role for CAPA to assume" --query "Role.Arn" --output text)
echo $CAPA_ROLE

Configure RHACM to use AWS Roles

  1. Annotate the multicluster-engine service account
oc annotate serviceaccount -n multicluster-engine capa-controller-manager eks.amazonaws.com/role-arn=${CAPA_ROLE}
  1. Restart the CAPA Controller Manager Deployment
oc rollout restart deployment capa-controller-manager -n multicluster-engine

  1. Deploy the AWSClusterControllerIdentity

    cat << EOF | oc apply -f -
apiVersion: infrastructure.cluster.x-k8s.io/v1beta2
kind: AWSClusterControllerIdentity
metadata:
  name: "default"
spec:
  allowedNamespaces: {}  # matches all namespaces
EOF

Configure RHACM to auto-import ROSA Clusters

  1. Enable the ClusterImporter feature gates on the ClusterManager
cat << EOF | oc apply -f -
apiVersion: operator.open-cluster-management.io/v1
kind: ClusterManager
metadata:
  name: cluster-manager
spec:
  registrationConfiguration:
    featureGates:
    - feature: ClusterImporter
      mode: Enable
    - feature: ManagedClusterAutoApproval
      mode: Enable
    autoApproveUsers:
    - system:serviceaccount:multicluster-engine:agent-registration-bootstrap
EOF
  1. Bind the CAPI manager permission to the import controller
cat << EOF | oc apply -f -
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: cluster-manager-registration-capi
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: capi-operator-manager-role
subjects:
- kind: ServiceAccount
  name: registration-controller-sa
  namespace: open-cluster-management-hub
EOF
  1. Get the CA from the hub cluster
CA=$(oc get cm -n kube-public kube-root-ca.crt -o json | jq '.data."ca.crt"' | base64)
  1. Apply a config map on the hub cluster
cat << EOF | oc apply -f -
apiVersion: v1
data:
  kubeconfig: |
    apiVersion: v1
    clusters:
    - cluster:
        server: ${ROSA_API_SERVER}
        certificate-authority-data: ${CA}
        name: ""
    contexts: null
    current-context: ""
    kind: Config
    preferences: {}
    users: null
kind: ConfigMap
metadata:
  name: cluster-info
  namespace: kube-public
EOF

Deploy a new ROSA HCP Cluster

  1. Create a namespace for the new cluster and an OCM secret
    oc new-project ${NEW_ROSA_CLUSTER_NAME} &&

    oc create -n ${NEW_ROSA_CLUSTER_NAME} secret generic rosa-creds-secret \
      --from-literal=ocmClientID=${OCM_CLIENT_ID} \
  --from-literal=ocmClientSecret=${OCM_CLIENT_SECRET} \
  --from-literal=ocmApiUrl='https://api.openshift.com'
  1. Create OIDC Config for new cluster
export OIDC_ID=$(rosa create oidc-config --mode=auto --yes --region ${ROSA_REGION} -o json | jq -r '.id')

rosa create oidc-provider --oidc-config-id ${OIDC_ID} --mode=auto --yes
  1. Create ROSA Operator Roles for new cluster
rosa create operator-roles --hosted-cp --prefix "${NEW_ROSA_CLUSTER_NAME}" --oidc-config-id "${OIDC_ID}"  --installer-role-arn arn:aws:iam::${AWS_ACCOUNT_ID}:role/ManagedOpenShift-HCP-ROSA-Installer-Role --mode=auto --yes
  1. Deploy AWS VPC and Subnets for the cluster

Note: This example deploys ROSA to a single availablility zone but can be easily adopted for multi-zone configuration

For detailed examples please refer to the official docs

git clone https://github.com/openshift-cs/terraform-vpc-example
cd terraform-vpc-example
terraform init
terraform plan -out rosa.tfplan -var region=${ROSA_REGION}
terraform apply rosa.tfplan
export SUBNET_IDS=$(terraform output -raw cluster-subnets-string)
PRIVATE_SUBNET=$(terraform output | grep -A 1 "cluster-private-subnets" | tail -n 1 | cut -d'"' -f2)
PUBLIC_SUBNET=$(terraform output | grep -A 1 "cluster-public-subnets" | tail -n 1 | cut -d'"' -f2)
AZ=$(aws ec2 describe-subnets \
  --subnet-ids "${PRIVATE_SUBNET}" \
  --query 'Subnets[0].AvailabilityZone' \
  --region "${ROSA_REGION}"
  --output text)
  1. Shorten Role names to meet AWS limit of 64 characters
export INGRESSARN="${NEW_ROSA_CLUSTER_NAME}-openshift-ingress-operator-cloud-credentials"
export INGRESSARN=arn:aws:iam::660250927410:role/${INGRESSARN:0:64}

export IMAGEREGISTRYARN="${NEW_ROSA_CLUSTER_NAME}-openshift-image-registry-installer-cloud-credentials"
export IMAGEREGISTRYARN=arn:aws:iam::660250927410:role/${IMAGEREGISTRYARN:0:64}

export STORAGEARN="${NEW_ROSA_CLUSTER_NAME}-openshift-cluster-csi-drivers-ebs-cloud-credentials"
export STORAGEARN=arn:aws:iam::660250927410:role/${STORAGEARN:0:64}

export NETWORKARN="${NEW_ROSA_CLUSTER_NAME}-openshift-cloud-network-config-controller-cloud-credentials"
export NETWORKARN=arn:aws:iam::660250927410:role/${NETWORKARN:0:64}

export KUBECLOUDCONTROLLERARN="${NEW_ROSA_CLUSTER_NAME}-kube-system-kube-controller-manager"
export KUBECLOUDCONTROLLERARN=arn:aws:iam::660250927410:role/${KUBECLOUDCONTROLLERARN:0:64}

export NODEPOOLMANAGEMENTARN="${NEW_ROSA_CLUSTER_NAME}-kube-system-capa-controller-manager"
export NODEPOOLMANAGEMENTARN=arn:aws:iam::660250927410:role/${NODEPOOLMANAGEMENTARN:0:64}

export CONTROLPLANEOPERATORARN="${NEW_ROSA_CLUSTER_NAME}-kube-system-control-plane-operator"
export CONTROLPLANEOPERATORARN=arn:aws:iam::660250927410:role/${CONTROLPLANEOPERATORARN:0:64}

export KMSPROVIDERARN="${NEW_ROSA_CLUSTER_NAME}-kube-system-kms-provider"
export KMSPROVIDERARN=arn:aws:iam::660250927410:role/${KMSPROVIDERARN:0:64}
  1. Create a new cluster
cat << EOF | oc apply -f -
apiVersion: cluster.open-cluster-management.io/v1
kind: ManagedCluster
metadata:
  name: ${NEW_ROSA_CLUSTER_NAME}
spec:
  hubAcceptsClient: true
---
apiVersion: cluster.x-k8s.io/v1beta1
kind: Cluster
metadata:
  name: ${NEW_ROSA_CLUSTER_NAME}
  namespace: ${NEW_ROSA_CLUSTER_NAME}
spec:
  clusterNetwork:
    pods:
      cidrBlocks: ["192.168.0.0/16"]
  infrastructureRef:
    apiVersion: infrastructure.cluster.x-k8s.io/v1beta2
    kind: ROSACluster
    name: ${NEW_ROSA_CLUSTER_NAME}
    namespace: ${NEW_ROSA_CLUSTER_NAME}
  controlPlaneRef:
    apiVersion: controlplane.cluster.x-k8s.io/v1beta2
    kind: ROSAControlPlane
    name: "rosa-cp-${NEW_ROSA_CLUSTER_NAME}"
    namespace: ${NEW_ROSA_CLUSTER_NAME}
---
apiVersion: infrastructure.cluster.x-k8s.io/v1beta2
kind: ROSACluster
metadata:
  name: ${NEW_ROSA_CLUSTER_NAME}
  namespace: ${NEW_ROSA_CLUSTER_NAME}
spec: {}
---
apiVersion: controlplane.cluster.x-k8s.io/v1beta2
kind: ROSAControlPlane
metadata:
  name: "rosa-cp-${NEW_ROSA_CLUSTER_NAME}"
  namespace: ${NEW_ROSA_CLUSTER_NAME}
spec:
  credentialsSecretRef:
    name: rosa-creds-secret
  rosaClusterName: ${NEW_ROSA_CLUSTER_NAME}
  domainPrefix: ${NEW_ROSA_CLUSTER_NAME}
  version: "${ROSA_VERSION}"
  region: ${ROSA_REGION}
  installerRoleARN: "arn:aws:iam::${AWS_ACCOUNT_ID}:role/ManagedOpenShift-HCP-ROSA-Installer-Role"
  supportRoleARN: "arn:aws:iam::${AWS_ACCOUNT_ID}:role/ManagedOpenShift-HCP-ROSA-Support-Role"
  workerRoleARN: "arn:aws:iam::${AWS_ACCOUNT_ID}:role/ManagedOpenShift-HCP-ROSA-Worker-Role"
  oidcID: ${OIDC_ID}
  rolesRef:
    ingressARN: ${INGRESSARN}
    imageRegistryARN: ${IMAGEREGISTRYARN}
    storageARN: ${STORAGEARN}
    networkARN: ${NETWORKARN}
    kubeCloudControllerARN: ${KUBECLOUDCONTROLLERARN}
    nodePoolManagementARN: ${NODEPOOLMANAGEMENTARN}
    controlPlaneOperatorARN: ${CONTROLPLANEOPERATORARN}
    kmsProviderARN: ${KMSPROVIDERARN}
  subnets:
    - "${PRIVATE_SUBNET}"
    - "${PUBLIC_SUBNET}"
  availabilityZones:
    - ${AZ}
  network:
    machineCIDR: "10.0.0.0/16"
    podCIDR: "10.128.0.0/14"
    serviceCIDR: "172.30.0.0/16"
  defaultMachinePoolSpec:
    instanceType: "m5.xlarge"
    autoscaling:
      maxReplicas: 3
      minReplicas: 2
  additionalTags:
    env: "demo"
    profile: "hcp"
    app-code: "MOBB-001"
    cost-center: "468"
    service-phase: "lab"
EOF

Configure RHACM to Auto-Import ROSA HCP Clusters

While still being logged into the ACM cluster, run the following commands.

  1. Create a KlusterletConfig
cat << EOF | oc apply -f -
apiVersion: config.open-cluster-management.io/v1alpha1
kind: KlusterletConfig
metadata:
  name: global
spec:
  hubKubeAPIServerConfig:
    serverVerificationStrategy: UseSystemTruststore
EOF

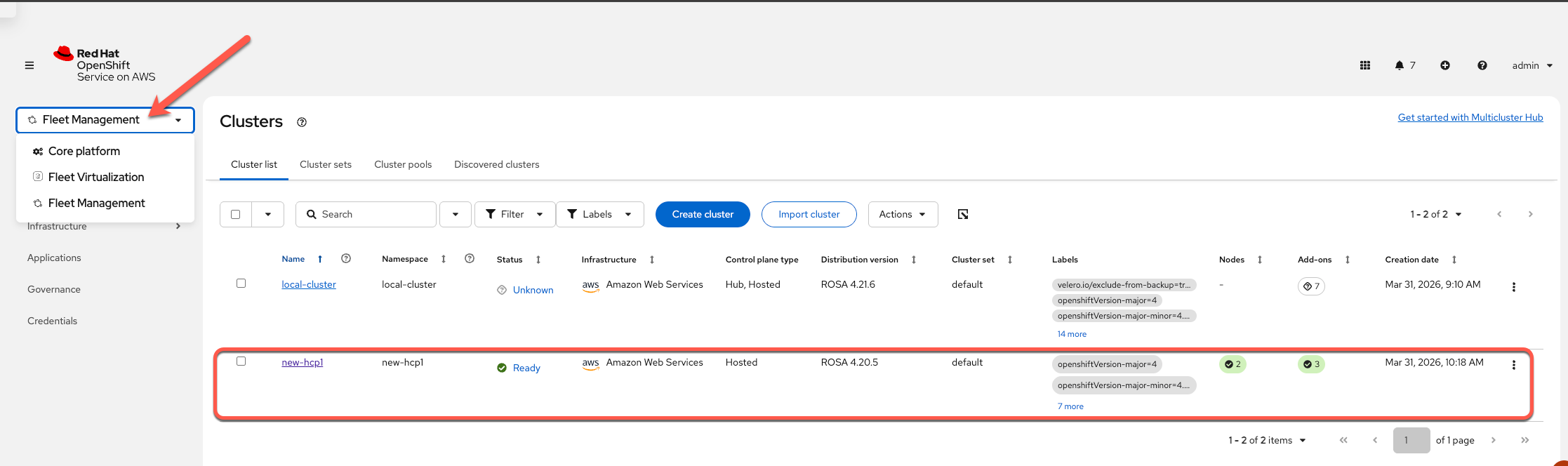

  1. Decode and import the new cluster secret
cat << EOF | oc apply -f -
$(oc get secret ${NEW_ROSA_CLUSTER_NAME}-import -n ${NEW_ROSA_CLUSTER_NAME} -o json | jq -r '.data."import.yaml"' | base64 --decode)
EOF
