Advanced Cluster Management Observability on ROSA

This content is authored by Red Hat experts, but has not yet been tested on every supported configuration.

This document will take you through deploying ACM Observability on a ROSA cluster. see here for the original documentation.


  • An existing ROSA cluster
  • An Advanced Cluster Management (ACM) deployment

Set up environment

  1. Set environment variables

    export CLUSTER_NAME=my-cluster
    export S3_BUCKET=$CLUSTER_NAME-acm-observability
    export REGION=us-east-2
    export NAMESPACE=open-cluster-management-observability
    export SA=tbd
    export SCRATCH_DIR=/tmp/scratch
    export AWS_ACCOUNT_ID=$(aws sts get-caller-identity --query Account --output text)
    export AWS_PAGER=""
    rm -rf $SCRATCH_DIR
    mkdir -p $SCRATCH_DIR

Prepare AWS Account

  1. Create an S3 bucket

    aws s3 mb s3://$S3_BUCKET
  2. Create a Policy for access to S3

    cat <<EOF > $SCRATCH_DIR/s3-policy.json
        "Version": "2012-10-17",
        "Statement": [
                "Sid": "Statement",
                "Effect": "Allow",
                "Action": [
                "Resource": [
  3. Apply the Policy

    S3_POLICY=$(aws iam create-policy --policy-name $CLUSTER_NAME-acm-obs \
      --policy-document file://$SCRATCH_DIR/s3-policy.json \
      --query 'Policy.Arn' --output text)
    echo $S3_POLICY
  4. Create service account

    aws iam create-user --user-name $CLUSTER_NAME-acm-obs  \
      --query User.Arn --output text
  5. Attach policy to user

    aws iam attach-user-policy --user-name $CLUSTER_NAME-acm-obs \
      --policy-arn ${S3_POLICY}
  6. Create Access Keys

    read -r ACCESS_KEY_ID ACCESS_KEY < <(aws iam create-access-key \
      --user-name $CLUSTER_NAME-acm-obs \
      --query 'AccessKey.[AccessKeyId,SecretAccessKey]' --output text)


Log into the OpenShift cluster that is running your ACM Hub. We’ll set up Observability here

  1. Create a namespace for the observability

    oc new-project $NAMESPACE
  2. Generate a pull secret (this will check if the pull secret exists, if not, it will create it)

    DOCKER_CONFIG_JSON=`oc extract secret/multiclusterhub-operator-pull-secret -n open-cluster-management --to=-` || \
      DOCKER_CONFIG_JSON=`oc extract secret/pull-secret -n openshift-config --to=-` && \
      oc create secret generic multiclusterhub-operator-pull-secret \
      -n open-cluster-management-observability \
      --from-literal=.dockerconfigjson="$DOCKER_CONFIG_JSON" \
  3. Create a Secret containing your S3 details

    cat << EOF | kubectl apply -f -
    apiVersion: v1
    kind: Secret
      name: thanos-object-storage
      namespace: open-cluster-management-observability
    type: Opaque
      thanos.yaml: |
        type: s3
          bucket: $S3_BUCKET
          endpoint: s3.$
          signature_version2: false
          access_key: $ACCESS_KEY_ID
          secret_key: $ACCESS_KEY
  4. Create a CR for MulticlusterHub

    cat << EOF | kubectl apply -f -
    kind: MultiClusterObservability
      name: observability
      observabilityAddonSpec: {}
          name: thanos-object-storage
          key: thanos.yaml

Access ACM Observability

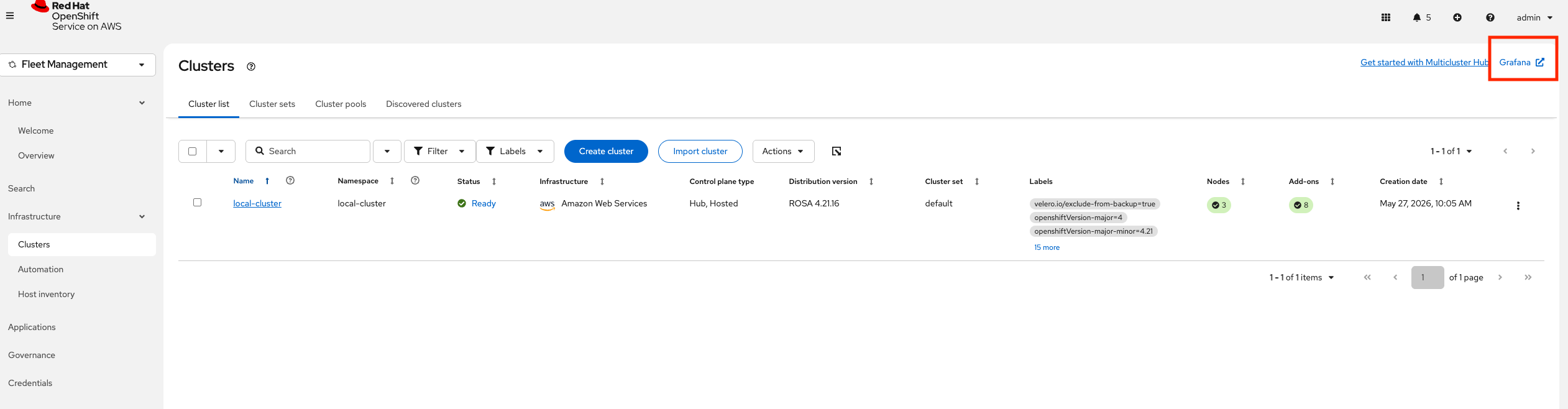

  1. Log into Advanced Cluster management and access the new Grafana dashboard
ACM Grafana Dashboard
