Configuring Cluster Observability Operator (COO) in ARO and Enabling remote writing of metrics to Azure Monitor Workspace

The Cluster Observability Operator (COO) is an optional OpenShift Container Platform Operator that enables administrators to create standalone monitoring stacks that are independently configurable for use by different services and users.

Deploying COO helps you address monitoring requirements that are hard to achieve using the default monitoring stack. COO is ideal for users who need high customizability, scalability, and long-term data retention, especially in complex, multi-tenant enterprise environments.

This guide will walk users through an example of how to use the COO to set up a highly available Prometheus instance that persists metrics, and enables remote writes of metrics to an Azure Monitor Prometheus

Prerequisites

1. You have access to the cluster as a cluster-admin
2. Follow the OpenShift documentation for Installing the Cluster Observability operator

Set up Azure Monitor Workspace/Grafana

Create Azure Monitor Workspace

Note: In this tutorial, all of the Azure resources will be created in the same resource group as the cluster

1. Follow the Microsoft documentation to Create an Azure Monitor Workspace

Create and Link Azure Managed Grafana

1. Follow the Microsoft documentation to Create an Azure Managed Grafana Workspace
2. Proceed to link the Grafana instance to your Azure Monitor workspace following the Microsoft documentation Link a grafana workspace

Create a Service Principal for use with Azure Monitor Workspace

SERVICE_PRINCIPAL_CLIENT_SECRET="$(az ad sp create-for-rbac --name cfung-azure-monitor-workspace --query 'password' -otsv)"

SERVICE_PRINCIPAL_CLIENT_ID="$(az ad sp list --display-name cfung-azure-monitor-workspace --query '[0].appId' -otsv)"

Give the Service Principal permisssions to publish metrics to your Azure Monitor Workspace

1. Go to the Azure portal. On the resource menu for your Azure Monitor workspace, select Overview. For Data collection rule, select the link.



2. On the resource menu for the data collection rule, select Access control (IAM). Select + Add, and then select Add role assignment



3. Select the Monitoring Metrics Publisher role, and then select Next

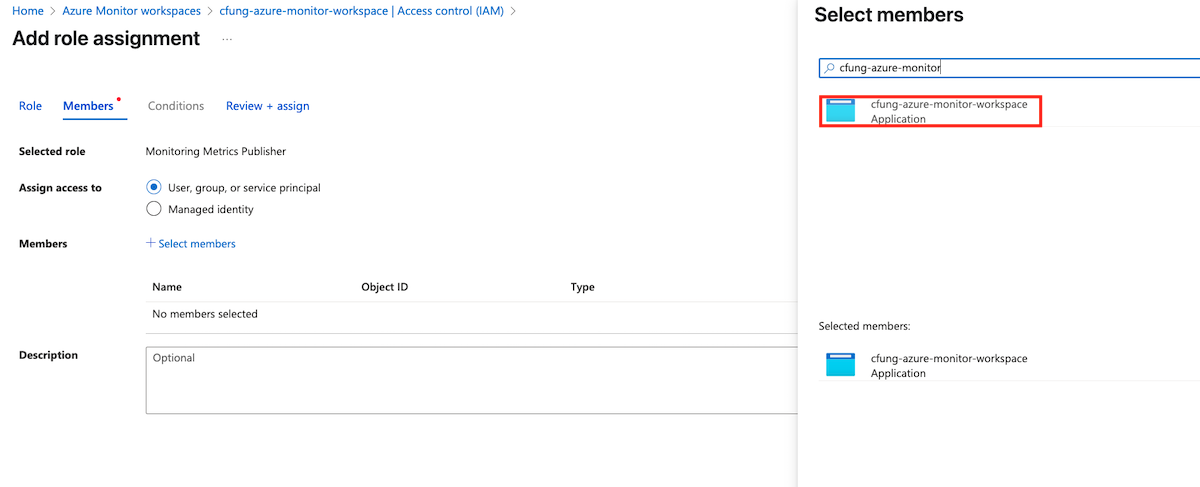

4. Select User, group, or service principal, and then choose +select members. Select the Service principal name that you created in the previous step, and then choose Select.



5. To complete the role assignment, select Review + assign.

Configuring the Cluster Observability Operator to monitor services

1. Create a project for COO monitoring resources

   oc new-project centralized-monitoring


2. Create a secret for COO prometheus to use to ship metrics to Azure Monitor prometheus

   oc create secret generic azuremonitor-secret \
   -n centralized-monitoring \
   --from-literal clientid=${SERVICE_PRINCIPAL_CLIENT_ID} \
   --from-literal clientsecret=${SERVICE_PRINCIPAL_CLIENT_SECRET}


3. Create 2 additonal projects and label them. These will be used to deploy 2 sample applications

   oc new-project test1
   oc new-project test2
   oc label namespace test1 monitored=enabled
   oc label namespace test2 monitored=enabled


Deploy Sample app and ServiceMonitor in namespace test1

1. Deploy a sample application in project test1

   cat <<EOF | oc apply -f -
   apiVersion: apps/v1
   kind: Deployment
   metadata:
     labels:
       app: prometheus-coo-example-app
     name: prometheus-coo-example-app
     namespace: test1
   spec:
     replicas: 1
     selector:
       matchLabels:
         app: prometheus-coo-example-app
     template:
       metadata:
         labels:
           app: prometheus-coo-example-app
       spec:
         containers:
         - image: ghcr.io/rhobs/prometheus-example-app:0.4.2
           name: prometheus-coo-example-app

   ---
   apiVersion: v1
   kind: Service
   metadata:
     labels:
       app: prometheus-coo-example-app
     name: prometheus-coo-example-app
     namespace: test1
   spec:
     ports:
     - port: 8080
       protocol: TCP
       targetPort: 8080
       name: web
     selector:
       app: prometheus-coo-example-app
     type: ClusterIP
   EOF


2. Verify that the pod is running

   oc -n test1 get pod


3. Create a ServiceMonitor object to specify how the service created above is to be monitored

   cat <<EOF | oc apply -f -
   apiVersion: monitoring.rhobs/v1
   kind: ServiceMonitor
   metadata:
     name: prometheus-coo-example-monitor
     labels:
       monitoredby: prometheus-coo
     namespace: test1
   spec:
     endpoints:
     - port: web
       scheme: http
       interval: 30s
     selector:
       matchLabels:
         app: prometheus-coo-example-app
   EOF


Deploy Sample app and ServiceMonitor in namespace test2

1. Deploy sample app using CRD below

   cat <<EOF | oc apply -f -
   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: coo-example-app
     namespace: test2
   spec:
     replicas: 1
     selector:
       matchLabels:
         app: coo-example-app
     template:
       metadata:
         labels:
           app: coo-example-app
       spec:
         containers:
         - name: httpserver
           image: registry.access.redhat.com/ubi9/python-311:1
           command:
           - bash
           - -c
           - |2-
             pip install prometheus_client && python - <<EOF
             from http.server import BaseHTTPRequestHandler, HTTPServer
             from prometheus_client import start_http_server, Counter
             class HTTPRequestHandler(BaseHTTPRequestHandler):
               def do_GET(self):
                 if self.path == '/':
                   self.send_response(200)
                   self.end_headers()
                   self.wfile.write(b'<html>Hello!</html>\n')
                   respCtr.labels(response='200').inc()
                 else:
                   self.send_error(404)
                   respCtr.labels(response='404').inc()
             start_http_server(9000)
             respCtr = Counter('coo_responses','Responses',["response"])
             HTTPServer(("", 8080), HTTPRequestHandler).serve_forever()
             EOF

   ---
   kind: Service
   apiVersion: v1
   metadata:
     name: coo-example-app
     namespace: test2
     labels:
       app: coo-example-app
   spec:
     ports:
     - name: http
       port: 8080
     - name: metrics
       port: 9000
     selector:
       app: coo-example-app
   EOF


2. Verify that the pod is running

   oc -n test2 get pod


3. Create a ServiceMonitor object to specify how the service created above is to be monitored

   cat <<EOF | oc apply -f -
   apiVersion: monitoring.rhobs/v1
   kind: ServiceMonitor
   metadata:
     name: coo-example-app
     labels:
       monitoredby: prometheus-coo
     namespace: test2
   spec:
     endpoints:
     - port: metrics
       interval: 30s
     selector:
       matchLabels:
         app: coo-example-app
   EOF


Create a Cluster Observability Operator MonitoringStack

1. Use the CRD below to create the COO MonitoringStack(the equivalent of a Prometheus stack) in the centralized-monitoring project. The MonitoringStack will be used to monitor the applications created above. The configuration creates a single Prometheus replica, retains metrics for 5 days, adds persistent storage to the Prometheus instance, and enables the remote writing of metrics to your Azure Monitor workspace.

   Replace {{INGESTION-URL}} value below with the Metrics ingestion endpoint from the Overview page for the Azure Monitor workspace.

   TENANT_ID=$(az account get-access-token --query tenant --output tsv)
   cat <<EOF | oc apply -f -
   apiVersion: monitoring.rhobs/v1alpha1
   kind: MonitoringStack
   metadata:
     name: prometheus-coo
     namespace: centralized-monitoring
     labels:
       coo: prometheus-coo
   spec:
     logLevel: debug
     retention: 5d
     namespaceSelector:
       matchLabels:
         monitored: enabled
     resourceSelector:
       matchLabels:
         monitoredby: prometheus-coo
     prometheusConfig:
       persistentVolumeClaim:
         accessModes:
           - ReadWriteOnce
         resources:
           requests:
             storage: 10Gi
         storageClassName: managed-csi
         volumeMode: Filesystem
       remoteWrite:
         - url: "{{INGESTION-URL}}"
           oauth2:
             clientId:
               secret:
                 name: azuremonitor-secret
                 key: clientid
             clientSecret:
               name: azuremonitor-secret
               key: clientsecret
             tokenUrl: "https://login.microsoftonline.com/$TENANT_ID/oauth2/v2.0/token"
             scopes:
               - "https://monitor.azure.com/.default"
       replicas: 1 #For higher availability, set 2 replicas
       scrapeInterval: 30s
   EOF


2. Confirm your Prometheus instance is running successfully by running the following command:

   oc get pods -n centralized-monitoring


   Example output

     NAME                            READY   STATUS    RESTARTS   AGE
     alertmanager-prometheus-coo-0   2/2     Running   0          2m42s
     alertmanager-prometheus-coo-1   2/2     Running   0          2m42s
     prometheus-prometheus-coo-0     3/3     Running   0          2m43s


   Note that 2 alertmanager instances are also created, which you can configure to set up custom alerting. We will not be covering that in this guide.

To disable alertmanager, set the following in the spec: section of the COO MonitoringStack CRD

spec:
  alertmanagerConfig:
    disabled: true

Validating the Monitoring Stack

Generate Metrics

1. Expose your applications by creating routes

   oc expose svc prometheus-coo-example-app -n test1
   oc expose svc coo-example-app -n test2


2. Access the routes from your browser or terminal to generate metrics

   Run the command below to get the route url

   oc get route prometheus-coo-example-app -n test1
   oc get route coo-example-app -n test2


   Use the HOST/PORT output to access the applications and generate metrics

3. Execute a query on the Prometheus pod to return the total HTTP request metric

   oc -n centralized-monitoring exec -c prometheus prometheus-prometheus-coo-0 -- curl -s 'http://localhost:9090/api/v1/query?query=http_requests_total'


   Example output

       {
       "status": "success",
       "data": {
       "resultType": "vector",
       "result": [
       {
           "metric": {
           "__name__": "http_requests_total",
           "code": "200",
           "endpoint": "web",
           "instance": "10.131.0.18:8080",
           "job": "prometheus-coo-example-app",
           "method": "get",
           "namespace": "test1",
           "pod": "prometheus-coo-example-app-6d57b4d844-255cr",
           "service": "prometheus-coo-example-app"
           },
           "value": [
           1744876084.1,
           "7"
           ]
       },
       {
           "metric": {
           "__name__": "http_requests_total",
           "code": "404",
           "endpoint": "web",
           "instance": "10.131.0.18:8080",
           "job": "prometheus-coo-example-app",
           "method": "get",
           "namespace": "test1",
           "pod": "prometheus-coo-example-app-6d57b4d844-255cr",
           "service": "prometheus-coo-example-app"
           },
           "value": [
           1744876084.1,
           "0"
           ]
       }
       ]
   }


View Metrics in Azure Monitor

1. Navigate to your Azure Monitor Worskspace and run the following PromQL query in the Prometheus explorer

   coo_responses_total


   Example output



View Metrics in Grafana

1. In the Azure portal, navigate to your Azure Grafana workspace. In the Overview tab’s Essentials section, select the Endpoint URL to access your Grafana instance. Single sign-on via Microsoft Entra ID has been configured for you automatically

2. Go to the Explore tab to begin viewing metrics in grafana
