Ansible Automation Platform (AAP) on ARO

Ansible Automation Platform (AAP) is a popular platform for centralizing and managing an organization’s automation content using Ansible as the engine for writing automation code. Prior to deployment, organizations are faced with the decision “where do I want to host this thing?”. In today’s landscape, there are several options between traditional Virtual Machines, running it on OpenShift, or even running it as a managed offering. This walkthrough covers a scenario when a customer wants to run AAP on top of a managed OpenShift offering like Azure Red Hat OpenShift (ARO).

NOTE: there are several design decisions that go into the deployment of AAP. This is a simple walkthrough to get you going and does not cover all possible decisions.

Prerequisites

• Azure CLI
• An Azure Red Hat OpenShift (ARO) cluster

High-Level Architecture

Below represents a high-level architecture. It is intended to show a simplified architecture with most components deployed. Please note that components can easily be spread across multiple availability zones to achieve high availability requirements, which is not represented in the overly simplified diagram below:

Prepare your Environment

This step simply sets up your environment with variables to be used during installation:

export AZR_RESOURCE_GROUP='aro-cluster-rg'
export AZR_CLUSTER='aro-cluster'
export AAP_ADMIN_USERNAME='admin'
export AAP_ADMIN_PASSWORD='MySecureP@$$w0rd' # notsecret
export AAP_ADMIN_EMAIL='myemail@mydomain.com'
export AAP_APPS_DOMAIN="$(az aro show -n $AZR_CLUSTER -g $AZR_RESOURCE_GROUP | jq -r '.clusterProfile.domain')"

Create the Prerequisite Projects and Secrets

This project assumes that you will be installing the following components of Ansible Automation Platform:

• Automation Controller
• Event Driven Ansible Controller
• Automation Hub

1. Create the projects for each of the components and the operators:

   for PROJECT in aap-controller aap-eda aap-hub aap; do
     oc new-project $PROJECT
   done


2. Create the admin password secret for each of the operators. This will be used to authenticate with each of the individual components of AAP:

   for PROJECT in aap-controller aap-eda aap-hub; do
     oc -n $PROJECT create secret generic aap-admin-password --from-literal=password="$AAP_ADMIN_PASSWORD"
   done


Install the AAP Operators

This section covers the installation of the AAP operators. The AAP operators are responsible for all deployment and management actions as it relates to AAP.

1. Install the AAP Operators:

   cat <<EOF | oc apply -f -
   apiVersion: operators.coreos.com/v1
   kind: OperatorGroup
   metadata:
     name: aap
     namespace: aap
   spec:
     upgradeStrategy: Default
   ---
   apiVersion: operators.coreos.com/v1alpha1
   kind: Subscription
   metadata:
     labels:
       operators.coreos.com/ansible-automation-platform-operator.aap: ""
     name: ansible-automation-platform-operator
     namespace: aap
   spec:
     channel: stable-2.4-cluster-scoped
     installPlanApproval: Automatic
     name: ansible-automation-platform-operator
     source: redhat-operators
     sourceNamespace: openshift-marketplace
     startingCSV: aap-operator.v2.4.0-0.1718152680
   EOF


Install the Automation Controller

1. Install the automation controller with the AutomationController custom resource definition which was provided via the operator installation in the previous step:

   NOTE: you may need to adjust the *_resource_requirements fields (not pictured below) depending upon how large your deployment is and how many hosts you are managing with AAP. See oc explain automationcontroller.spec for full configuration details.

   cat <<EOF | oc apply -f -
   apiVersion: automationcontroller.ansible.com/v1beta1
   kind: AutomationController
   metadata:
     labels:
       app.kubernetes.io/component: automationcontroller
       app.kubernetes.io/managed-by: automationcontroller-operator
       app.kubernetes.io/operator-version: ""
       app.kubernetes.io/part-of: default
     name: default
     namespace: aap-controller
   spec:
     admin_email: $AAP_ADMIN_EMAIL
     admin_user: $AAP_ADMIN_USERNAME
     admin_password_secret: aap-admin-password
     auto_upgrade: false
     create_preload_data: true
     garbage_collect_secrets: false
     hostname: ansible.apps.$AAP_APPS_DOMAIN
     image_pull_policy: IfNotPresent
     ingress_type: Route
     ipv6_disabled: false
     loadbalancer_ip: ""
     loadbalancer_port: 80
     loadbalancer_protocol: http
     metrics_utility_cronjob_gather_schedule: '@hourly'
     metrics_utility_cronjob_report_schedule: '@monthly'
     metrics_utility_enabled: false
     metrics_utility_pvc_claim_size: 5Gi
     no_log: true
     postgres_keepalives: true
     postgres_keepalives_count: 5
     postgres_keepalives_idle: 5
     postgres_keepalives_interval: 5
     postgres_storage_class: managed-csi
     projects_persistence: true
     projects_storage_access_mode: ReadWriteMany
     projects_storage_class: azurefile-csi
     projects_storage_size: 8Gi
     projects_use_existing_claim: _No_
     replicas: 2
     route_host: ansible.apps.$AAP_APPS_DOMAIN
     route_tls_termination_mechanism: Edge
     service_type: ClusterIP
     set_self_labels: true
     task_privileged: false
     task_replicas: 2
     web_replicas: 2
   EOF


2. This should take a few minutes to become ready. You can monitor the status by checking to see the pods that are deployed. The deployed pods are prepended with the .metadata.name value of the AutomationController instance deployed above. In this case, default are the deployed pods:

   oc get pods -n aap-controller
   NAME                                                              READY   STATUS    RESTARTS   AGE
   default-postgres-13-0                                             1/1     Running   0          20h
   default-task-58b4877695-hxwbl                                     4/4     Running   0          20h
   default-task-58b4877695-lbmtz                                     4/4     Running   0          20h
   default-web-6f5f558647-cmqhm                                      3/3     Running   0          20h
   default-web-6f5f558647-xc45k                                      3/3     Running   0          20h


3. Should you run into issues, you can check the logs of the automation controller operator pod. This operator is responsible for watching for new AutomationController instances and deploying and managing those instances:

   oc -n aap logs "$(oc get pods -n aap | grep automation-controller | awk '{print $1}')"

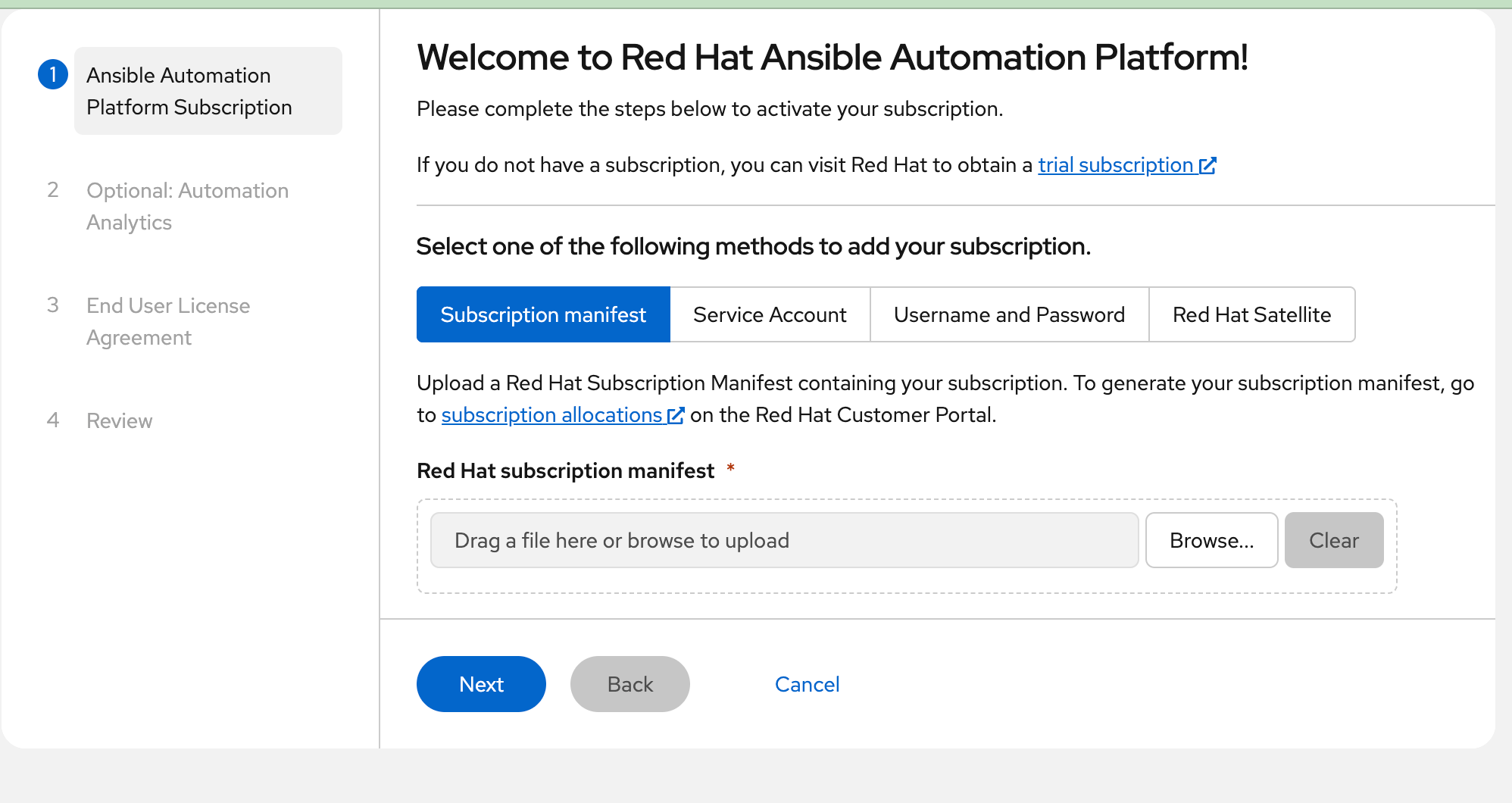

4. Once deployed (you should see some task pods, some web pods, and a postgres pod), you can login to the Ansible Automation Platform UI with the AAP_ADMIN_USERNAME user and the password that you set with the AAP_ADMIN_PASSWORD environment variable. Once logged in you will need to provide access to an AAP subscription via your RH or Satellite credentials, accept a EULA, and then you are redirected to the dashboard. You can access AAP via the https://ansible.apps.$AAP_APPS_DOMAIN url:



Install Event Driven Ansible Controller

For those that wish to use event-driven Ansible, you can install the EDA controller.

1. Install the EDA controller with the EDA custom resource definition which was provided via the operator installation in the previous step:

   NOTE: you may need to adjust the *_resource_requirements fields (not pictured below) depending upon how large your deployment is and how many hosts you are managing with AAP. See oc explain eda.spec for full configuration details.

   cat <<EOF | oc apply -f -
   apiVersion: eda.ansible.com/v1alpha1
   kind: EDA
   metadata:
     name: default
     namespace: aap-eda
   spec:
     admin_user: $AAP_ADMIN_USERNAME
     admin_password_secret: aap-admin-password
     automation_server_url: http://default-service.aap-controller.svc.cluster.local
     automation_server_ssl_verify: "no"
     hostname: ansible-eda.apps.$AAP_APPS_DOMAIN
     route_host: ansible-eda.apps.$AAP_APPS_DOMAIN
   EOF


2. This should take a few minutes to become ready. You can monitor the status by checking to see the pods that are deployed. The deployed pods are prepended with the .metadata.name value of the EDA instance deployed above. In this case, default are the deployed pods:

   oc get pods -n aap-eda
   NAME                                         READY   STATUS    RESTARTS   AGE
   default-activation-worker-75687bbc94-57cfx   1/1     Running   0          164m
   default-activation-worker-75687bbc94-8g5jz   1/1     Running   0          164m
   default-activation-worker-75687bbc94-jhbl2   1/1     Running   0          164m
   default-activation-worker-75687bbc94-w8ftt   1/1     Running   0          164m
   default-activation-worker-75687bbc94-wdkx9   1/1     Running   0          164m
   default-api-79ccd57964-k6tnv                 2/2     Running   0          164m
   default-default-worker-68c67b6c7c-67p79      1/1     Running   0          164m
   default-default-worker-68c67b6c7c-rt64p      1/1     Running   0          164m
   default-postgres-13-0                        1/1     Running   0          166m
   default-redis-76bb4fd9b5-4cpgm               1/1     Running   0          166m
   default-scheduler-6b6794b566-bmwt5           1/1     Running   0          164m
   default-ui-84789f9657-ktsbd                  1/1     Running   0          164m


3. Should you run into issues, you can check the logs of the automation hub operator pod. This operator is responsible for watching for new EDA instances and deploying and managing those instances:

   oc -n aap logs "$(oc get pods -n aap | grep eda-server | awk '{print $1}')"


4. Once deployed (you should see activation workers, api pods, default workers and other various pods), you can login to the Ansible EDA UI with the AAP_ADMIN_USERNAME user and the password that you set with the AAP_ADMIN_PASSWORD environment variable. You can access AAP via the https://ansible-eda.apps.$AAP_APPS_DOMAIN url:



   NOTE: should you run into issues with an invalid username or password, you can change it to the value you set as AAP_ADMIN_PASSWORD (see https://access.redhat.com/solutions/7050687 )

   oc -n aap-eda exec -it "$(oc get pods -n aap-eda | grep default-worker | awk '{print $1}' | head -1)" bash
   aap-eda-manage changepassword admin
   Password: ******
   Password (confirm): ******


Install Automation Hub

For those that wish to host their own Ansible content locally, you may also wish to install Automation Hub.

1. Install the automation hub with the AutomationHub custom resource definition which was provided via the operator installation in the previous step:

   NOTE: you may need to adjust the *_resource_requirements fields (not pictured below) depending upon how large your deployment is and how many hosts you are managing with AAP. See oc explain automationhub.spec for full configuration details.

   cat <<EOF | oc apply -f -
   apiVersion: automationhub.ansible.com/v1beta1
   kind: AutomationHub
   metadata:
     name: default
     namespace: aap-hub
   spec:
     admin_password_secret: aap-admin-password
     hostname: ansible-hub.apps.$AAP_APPS_DOMAIN
     file_storage_storage_class: azurefile-csi
   EOF


2. This should take a few minutes to become ready. You can monitor the status by checking to see the pods that are deployed. The deployed pods are prepended with the .metadata.name value of the AutomationHub instance deployed above. In this case, default are the deployed pods:

   oc get pods -n aap-hub
   NAME                              READY   STATUS    RESTARTS   AGE
   default-api-67d65994b-wkf46       1/1     Running   0          5m34s
   default-content-c57949488-4nmtw   1/1     Running   0          5m53s
   default-content-c57949488-xg5cp   1/1     Running   0          5m53s
   default-postgres-13-0             1/1     Running   0          15m
   default-redis-7cf4b5d458-fqpck    1/1     Running   0          5m46s
   default-worker-5948db6cc-mtv7z    1/1     Running   0          3m24s
   default-worker-5948db6cc-r9m8m    1/1     Running   0          3m24s


3. Should you run into issues, you can check the logs of the automation hub operator pod. This operator is responsible for watching for new AutomationHub instances and deploying and managing those instances:

   oc -n aap logs "$(oc get pods -n aap | grep automation-hub | awk '{print $1}')"


4. Once deployed (you should see api pods, worker pods, a postgres pod, a redis pod and content pods), you can login to the Ansible Automation Hub UI with the AAP_ADMIN_USERNAME user and the password that you set with the AAP_ADMIN_PASSWORD environment variable. You can access AAP via the https://default-aap-hub.apps.$AAP_APPS_DOMAIN url:
